Magnetic Clutch Relay: Inspection

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE MAGNETIC CLUTCH RELAY (Marking: MG CLT) FROM ENGINE ROOM JUNCTION BLOCK

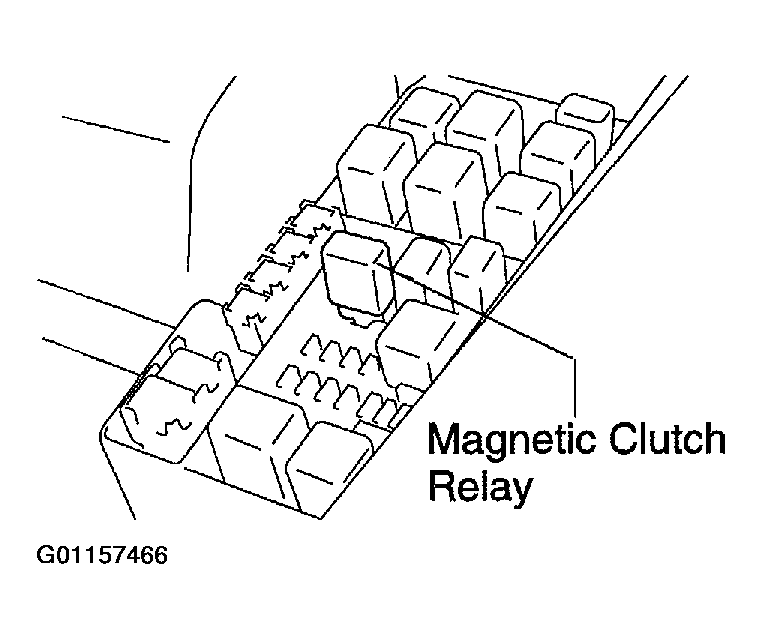

Fig 1: Removing Magnetic Clutch Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT MAGNETIC CLUTCH RELAY (Marking: MG CLT) CONTINUITY

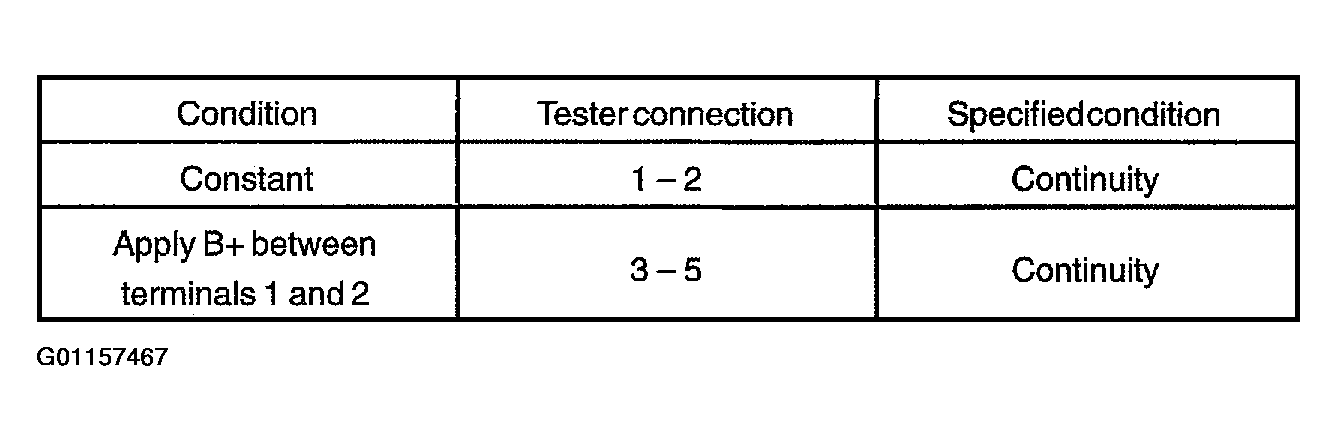

Fig 2: Magnetic Clutch Relay Condition Continuity Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.

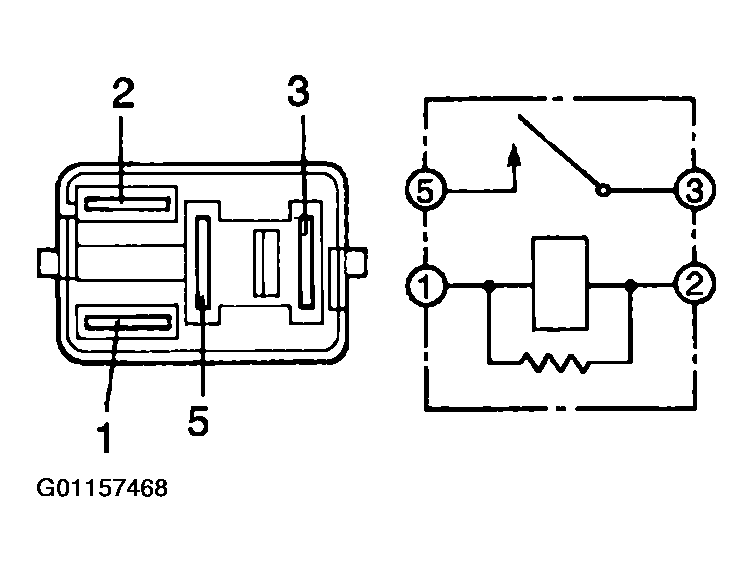

Fig 3: Inspecting Magnetic Clutch Relay Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAGNETIC CLUTCH RELAY TO ENGINE ROOM JUNCTION BLOCK
