Remove Drive Belt

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the pivot bolt and adjusting lock bolt.
Torque:
1. Pivot bolt: 56 N.m (570 kgf.cm, 41 ft.lbf)
2. Adjusting lock bolt: 18 N.m (185 kgf.cm, 13 ft.lbf)
Loosen the belt tension by adjusting bolt and remove the drive belt.

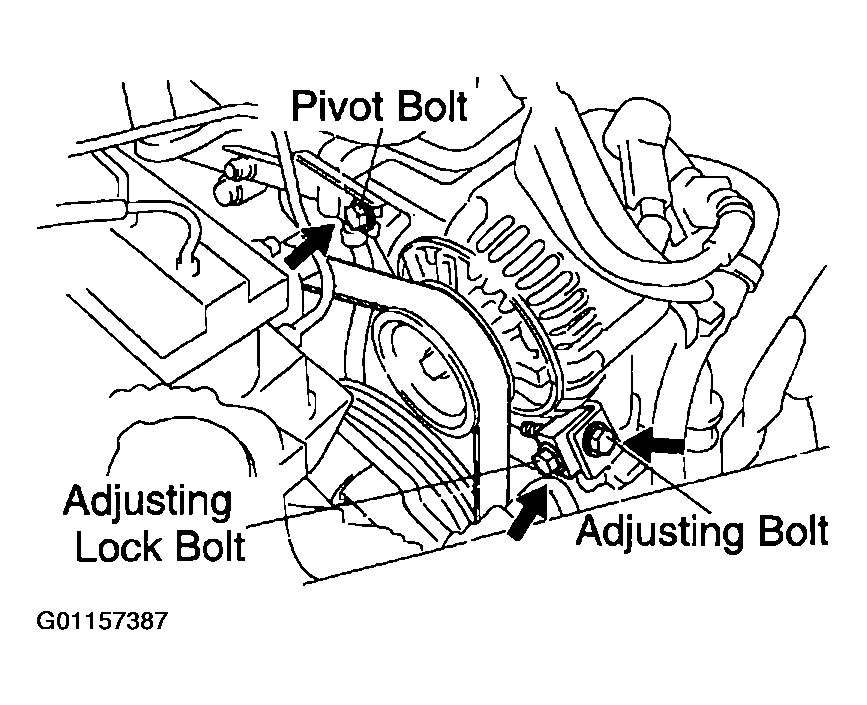

Fig 1: Loosening Pivot Bolt And Adjusting Lock Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
