Compressor And Magnetic Clutch: Removal

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

RUN ENGINE AT IDLE SPEED WITH A/C ON FOR APPROX. 10 MINUTES
STOP ENGINE
DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY
DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
REMOVE DRIVE BELT (See REMOVAL )
DISCONNECT DISCHARGE AND SUCTION HOSES
Remove the bolt, nut and disconnect the both hoses.

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

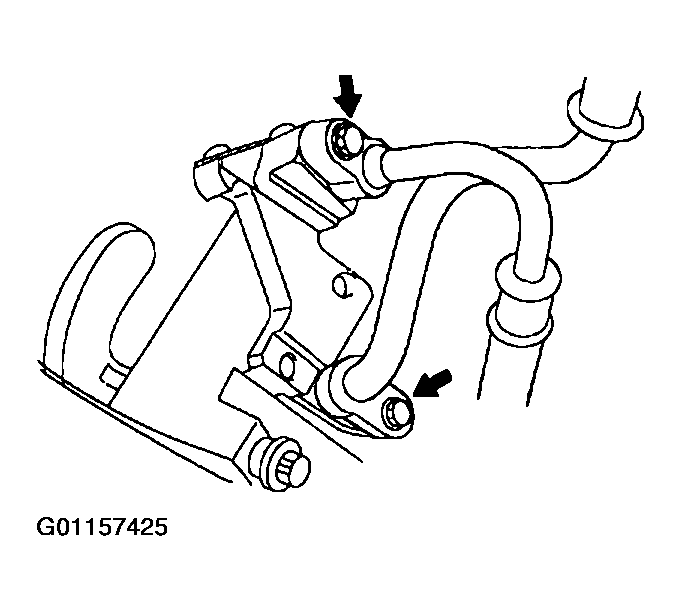

Fig 1: Disconnecting Discharge And Suction Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Disconnect the generator connector.
2. Remove the nut, and disconnect the generator wire.
3. Disconnect the wire harness from the clamp.
4. Remove the pivot bolt, adjusting lock bolt and generator.

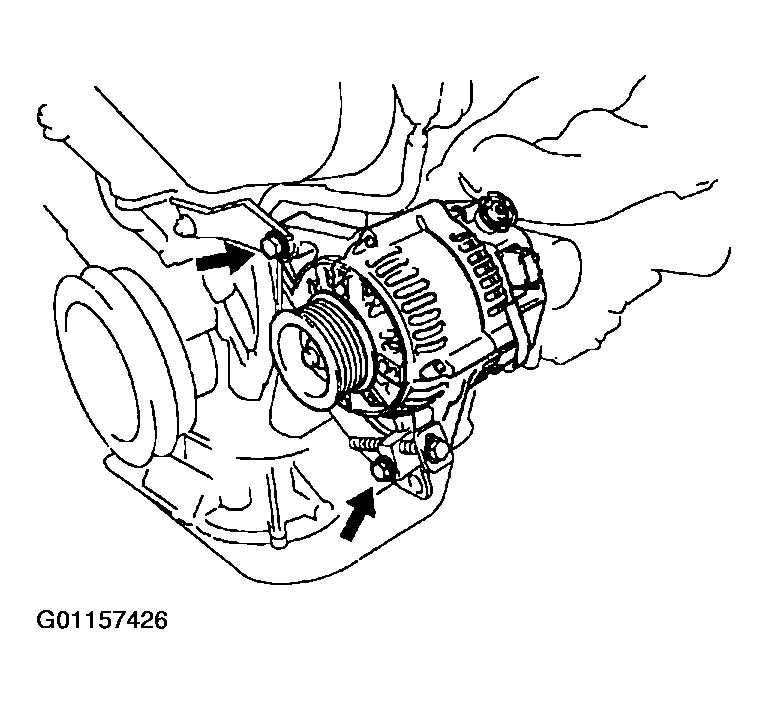

  Fig 2: Removing Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMPRESSOR
1. Disconnect the connector.
2. Disconnect the wire harness clamp.
3. Remove the 2 bolts, nut and drive belt adjusting bar bracket.

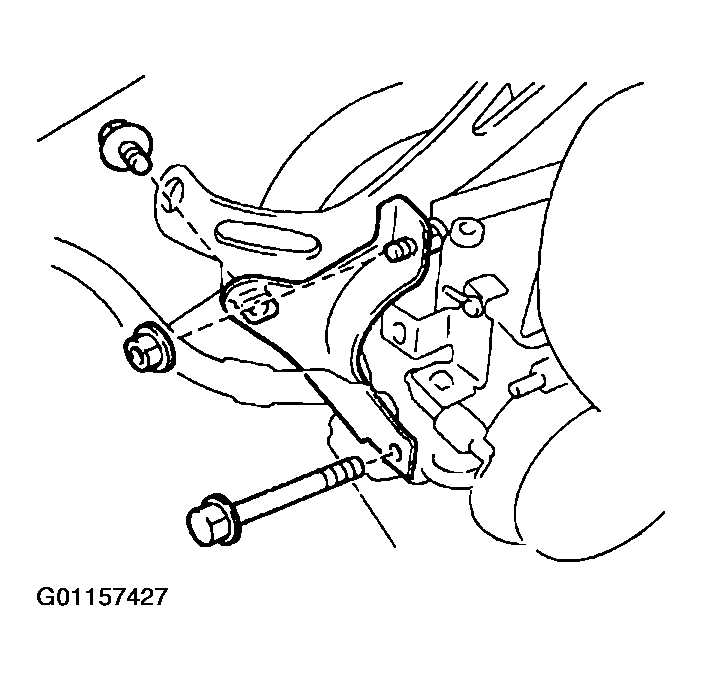

  Fig 3: Removing Drive Belt Adjusting Bar Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 bolts and compressor.

  Fig 4: Removing Compressor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
