Compressor And Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PRESSURE PLATE
1. Using SST and a socket wrench, remove the shaft bolt.
  1. SST 07112-76060
  2. Torque: 13.2 N.m (135 kgf.cm, 9 ft.lbf)

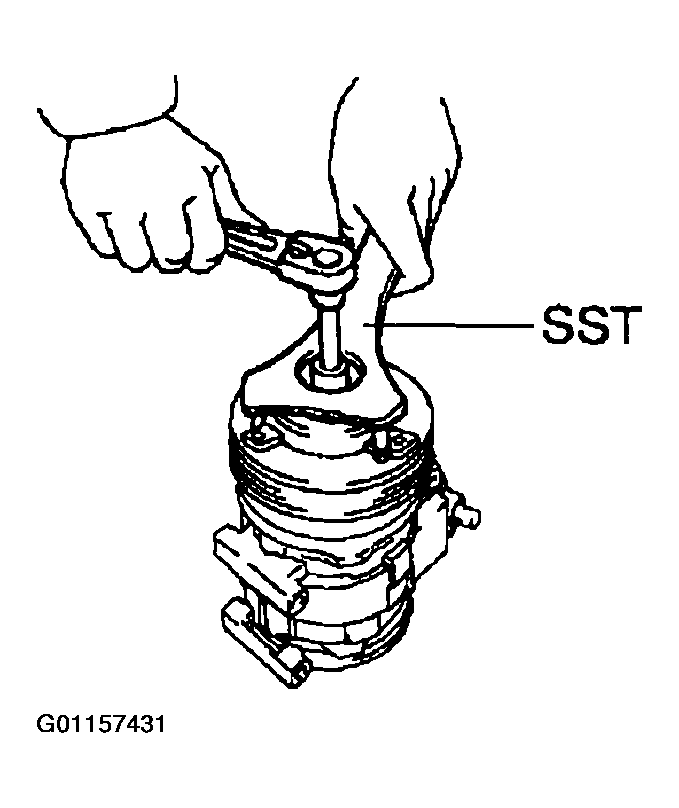

  Fig 1: Removing Shaft Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

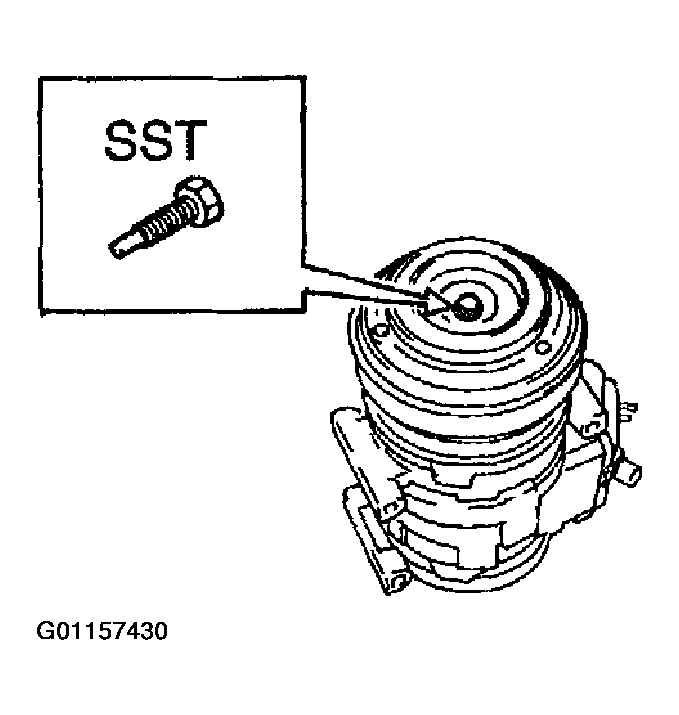

2. Install SST on the pressure plate.
  1. SST 07112-66040

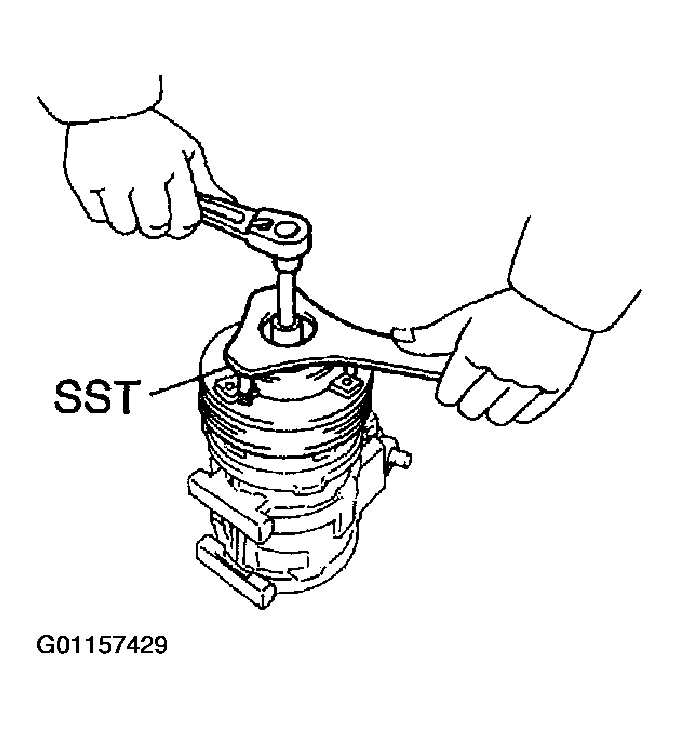

  Fig 2: Installing SST On Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and socket wrench, remove the pressure plate.
  1. SST 07112-76060, 07112-66040
  Fig 3: Removing Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the shims from the pressure plate.

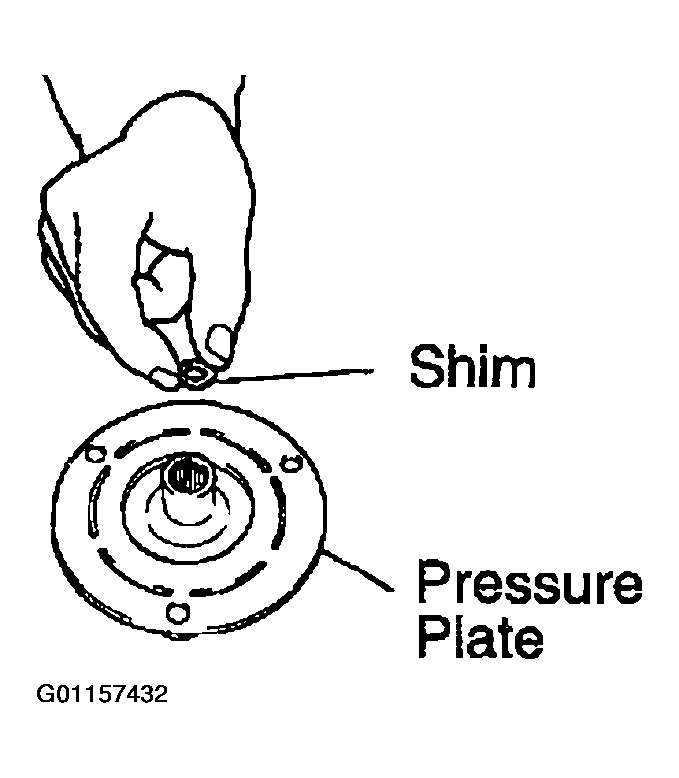

  Fig 4: Removing Shims From Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROTOR

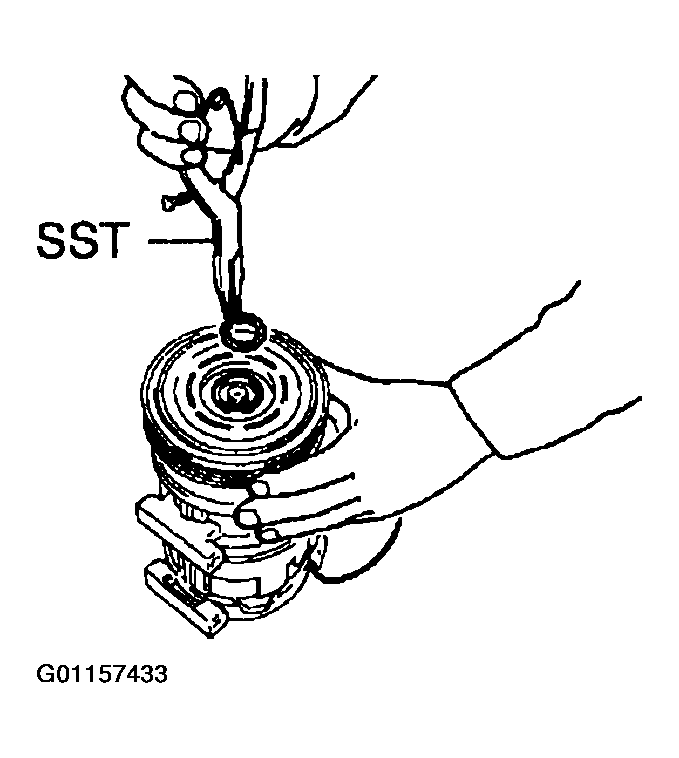

1. Using SST, remove the snap ring.
  1. SST 95994-10020
  Fig 5: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

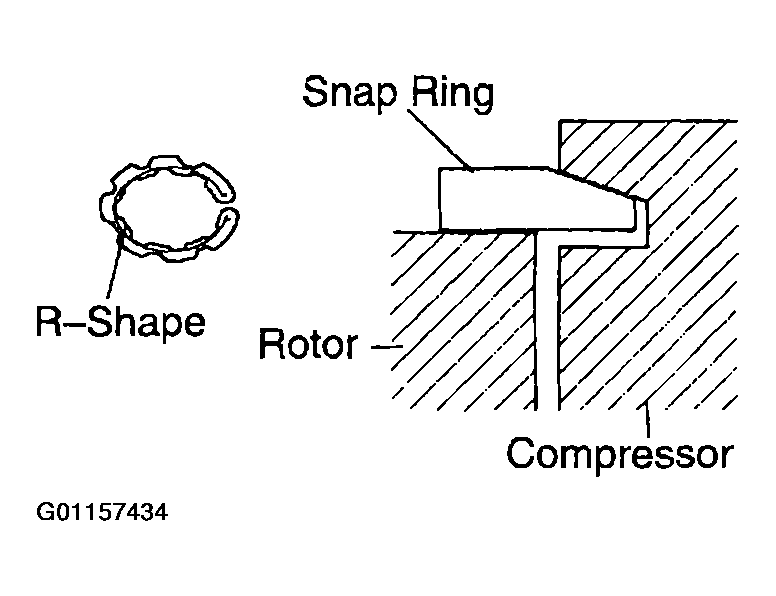

  NOTE: At the time of reassembly, please refer to the following item.

  The snap ring should be installed so that beveled side faces up .

  Fig 6: Instructions For Snap Ring Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

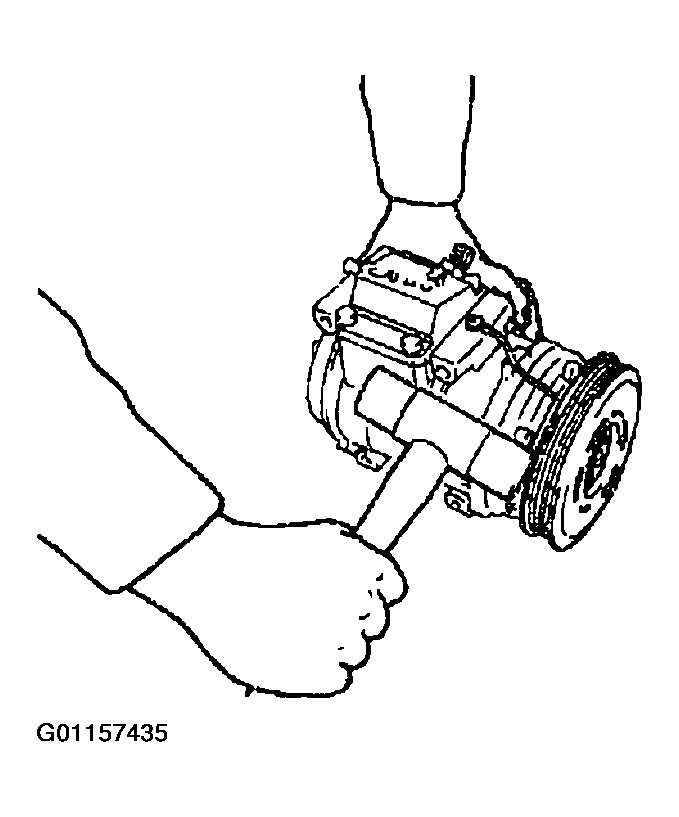

2. Using a plastic hammer, tap the rotor off the shaft.
  NOTE: Be careful not to damage the pulley when tapping on the rotor.

  Fig 7: Removing Rotor From Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STATOR

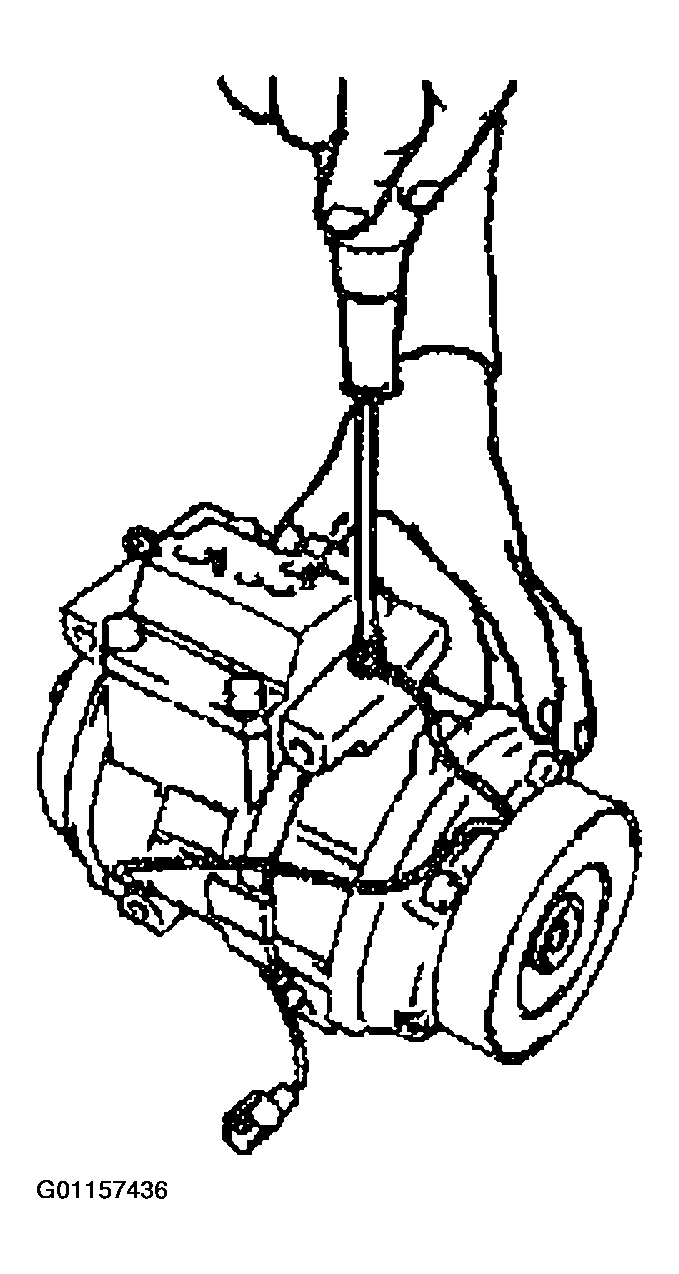

1. Disconnect the stator lead wire from the compressor housing.

  Fig 8: Disconnecting Stator Lead Wire From Compressor Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

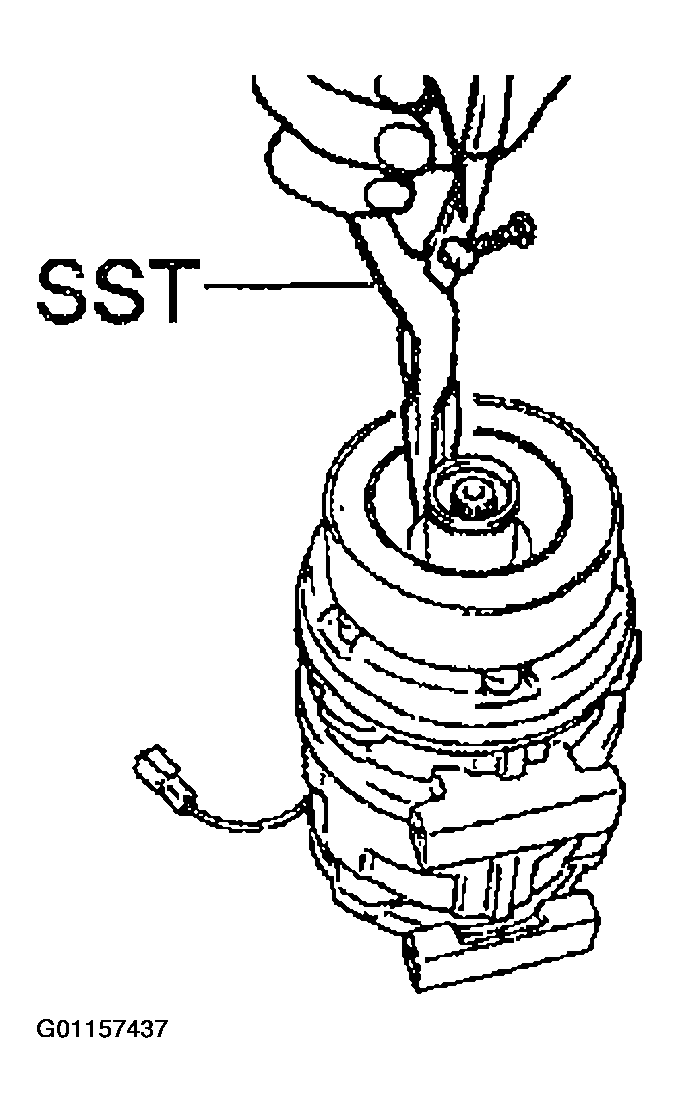

2. Using SST, remove the snap ring.
  1. SST 95994-10020
  Fig 9: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

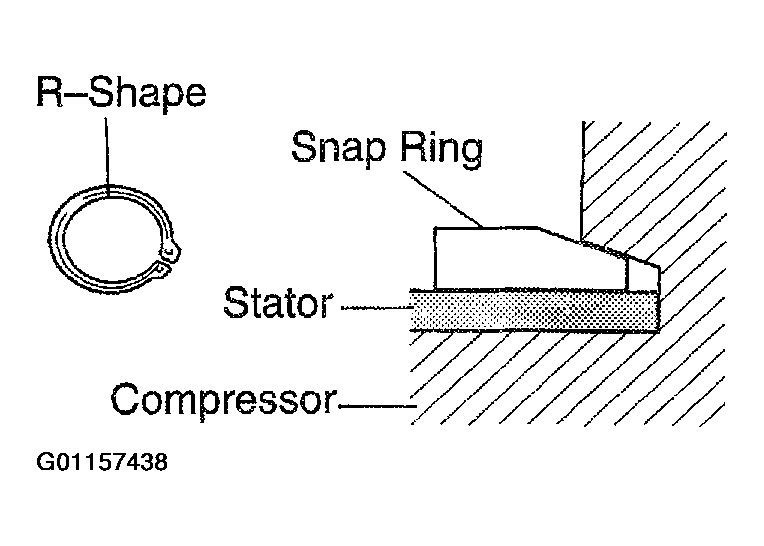

  NOTE: At the time of reassembly, please refer to the following item.

  The snap ring should be installed so that its beveled side faces up.

  Fig 10: Instructions For Snap Ring Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

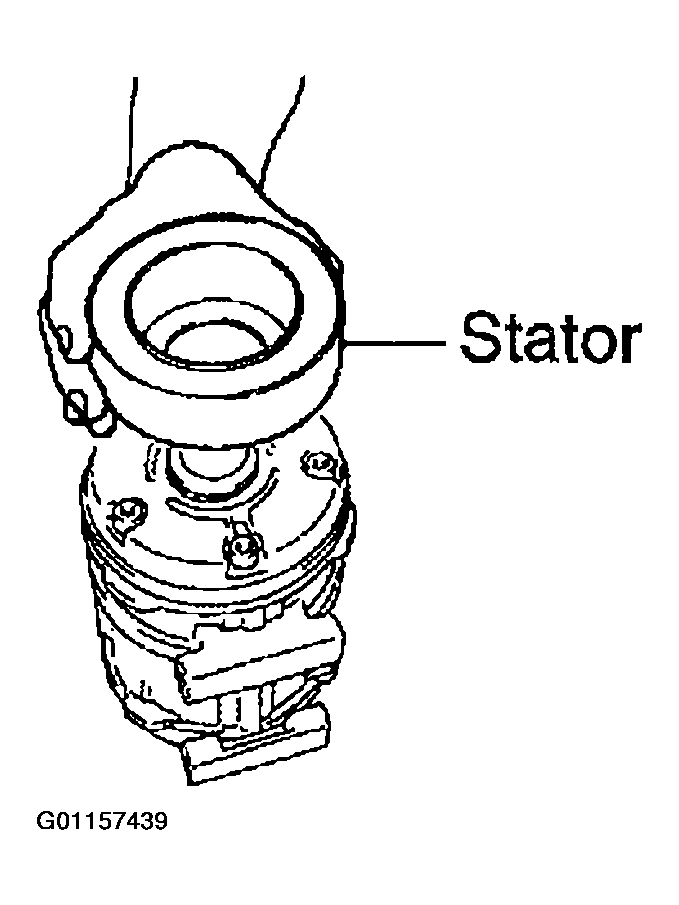

3. Remove the stator.

  Fig 11: Removing Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
