Blower Motor: Inspection

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO.2 UNDER COVER (See  Figure  )
  2. REMOVE BLOWER MOTOR
    1. Disconnect the connector.
    2. Remove the 3 screws and blower motor.

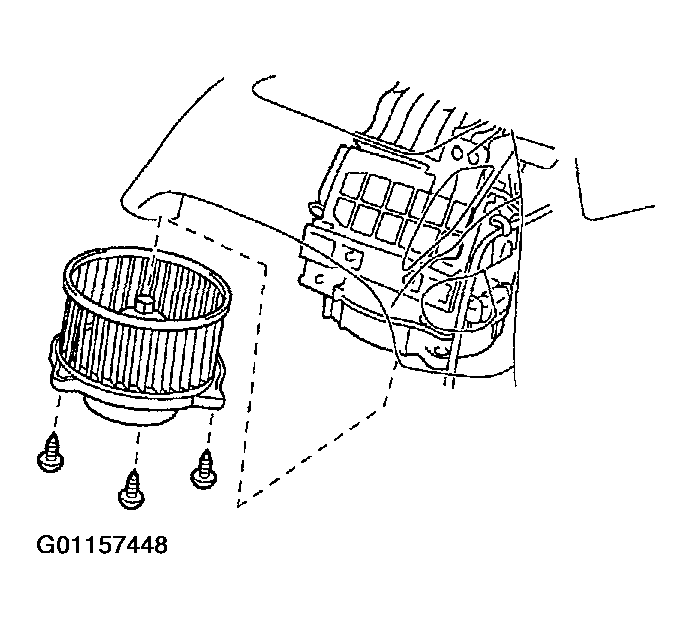

      Fig 1: Removing Blower Motor
      G01157448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT BLOWER MOTOR OPERATION (See  AIR CONDITIONING  )
  4. INSTALL BLOWER MOTOR
    1. Install the blower motor with 3 screws.
    2. Connect the connector.
  5. INSTALL NO.2 UNDER COVER
