Air Outlet Servomotor: Inspection

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THESE PARTS:
    1. Cowl side trim RH
    2. Front door scuff plate RH
    3. No.2 under cover
    4. Lower No.2 panel
  2. REMOVE AIR OUTLET SERVOMOTOR
    1. Remove the 3 screws and air duct.

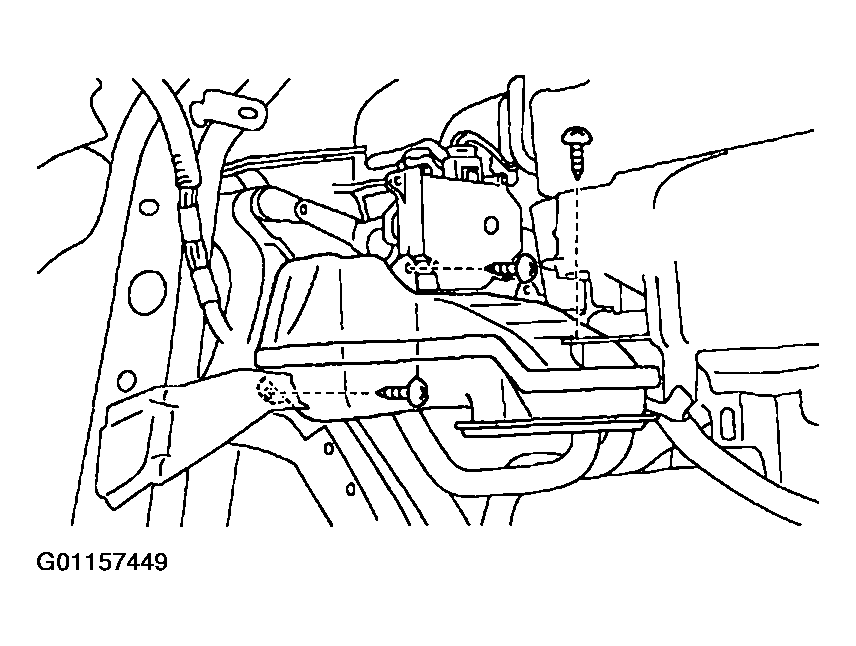

      Fig 1: Removing Air Duct
      G01157449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and servomotor.

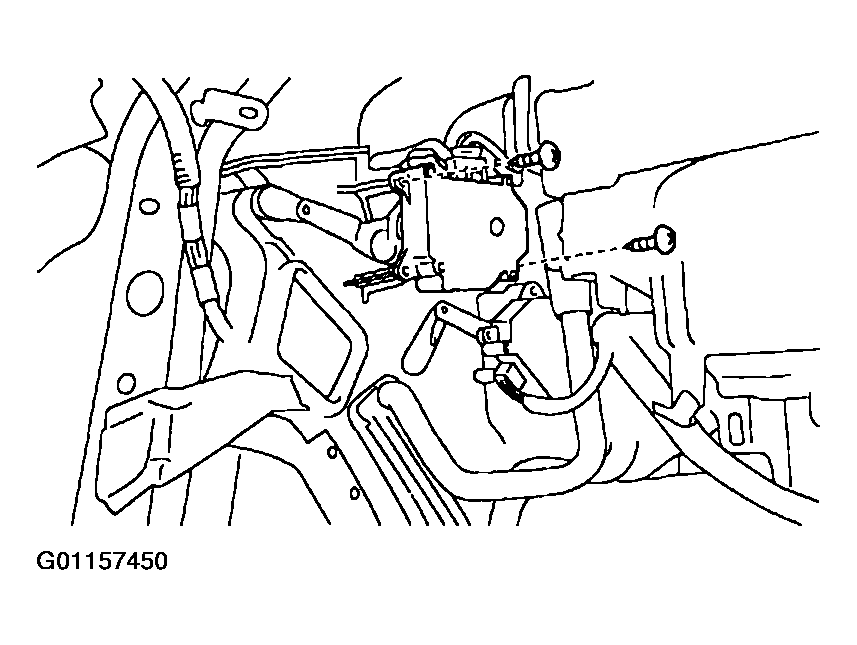

      Fig 2: Removing Servomotor
      G01157450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT AIR OUTLET SERVOMOTOR OPERATION (See )
  4. INSPECT AIR OUTLET DAMPER POSITION SENSOR (See )
  5. INSTALL AIR OUTLET SERVOMOTOR
  6. INSTALL AIR DUCT
  7. INSTALL THESE PARTS:
    1. Lower No.2 panel
    2. No.2 under cover
    3. Front door scuff plate RH
    4. Cowl side trim RH
