Diagnosis & Repair (With OBD-II Scan Tool)

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1-Fig 3 .

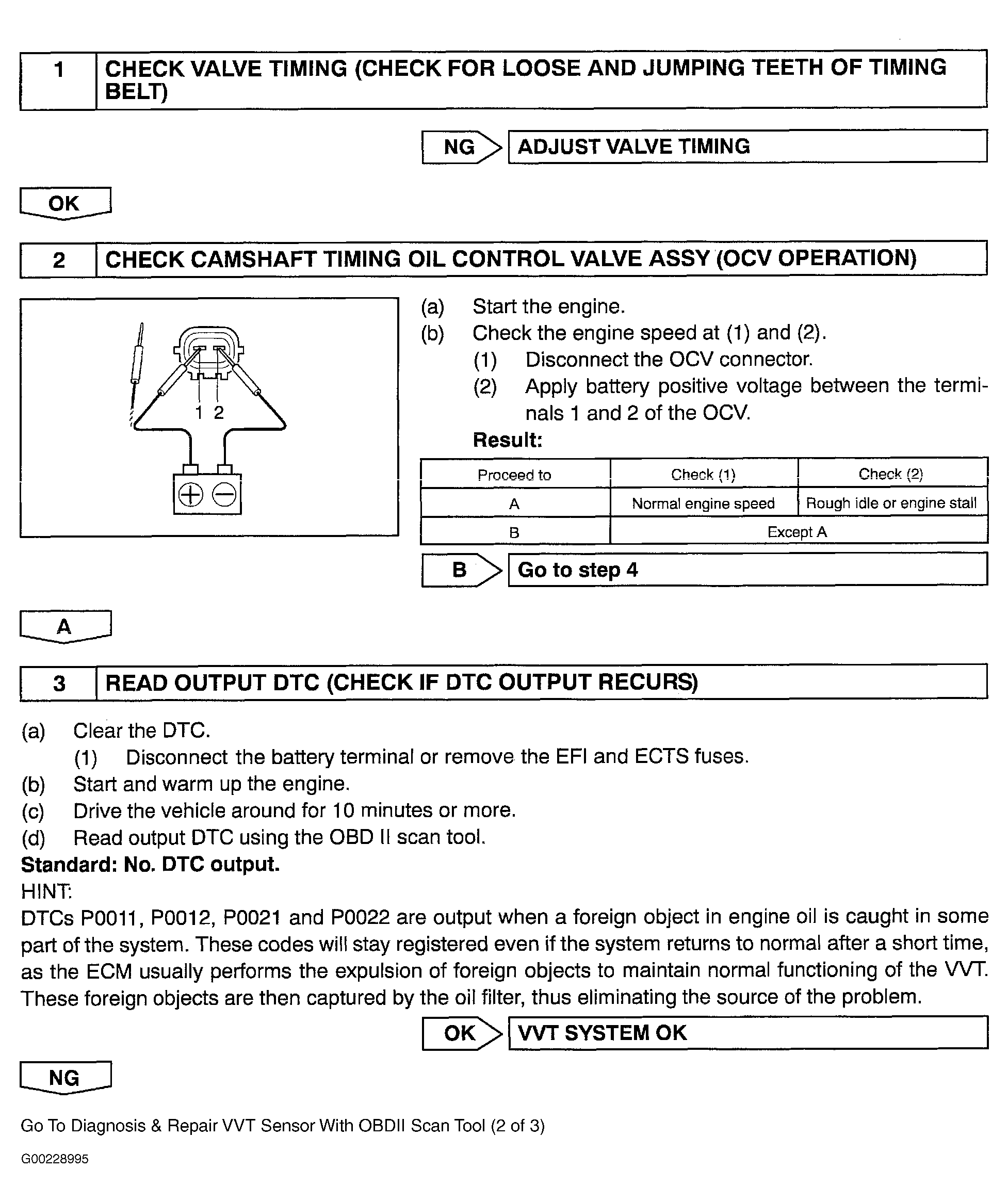

Fig 1: Diagnosis & Repair Of VVT Sensor (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

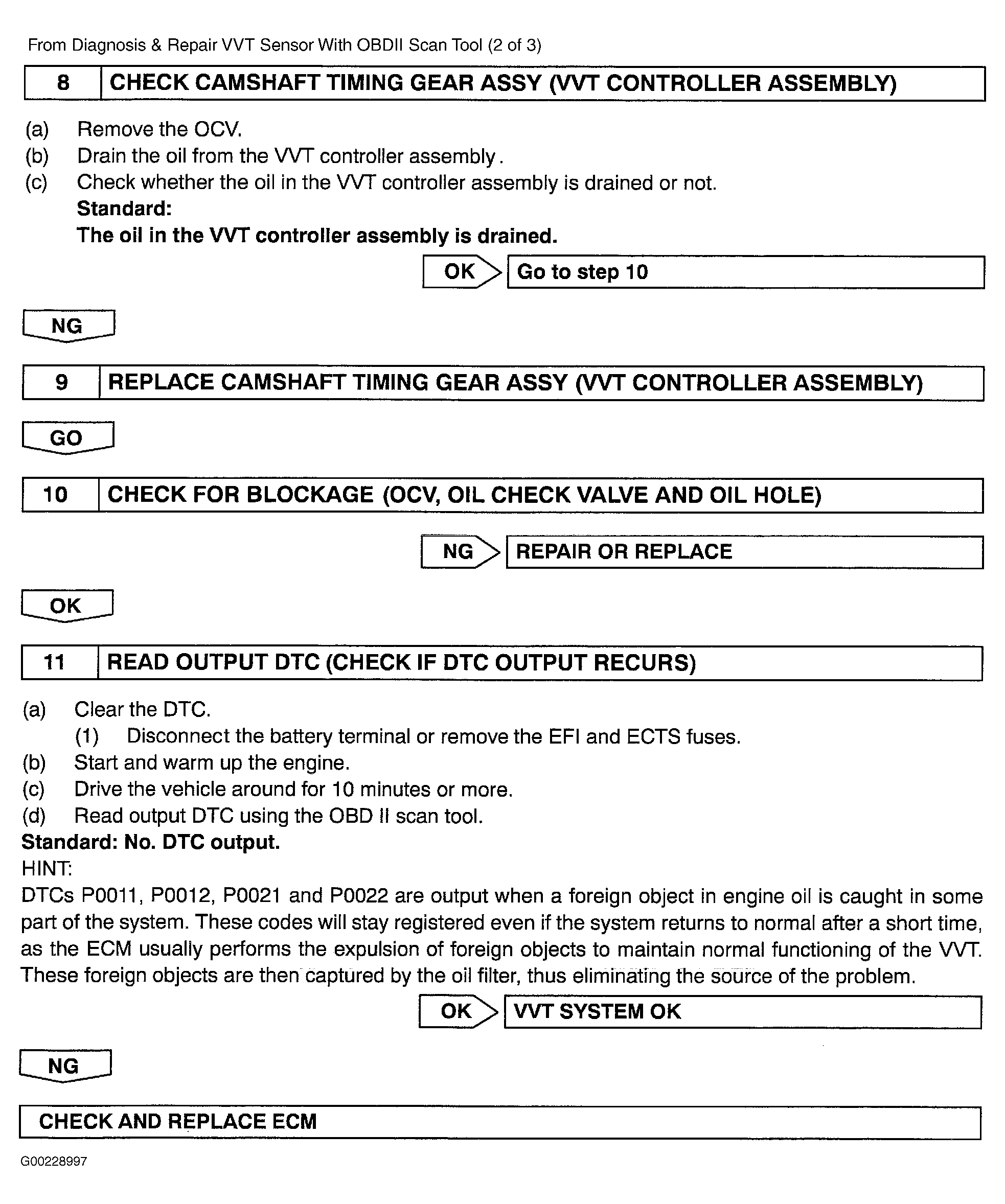

Fig 2: Diagnosis & Repair Of VVT Sensor (2 Of 3)

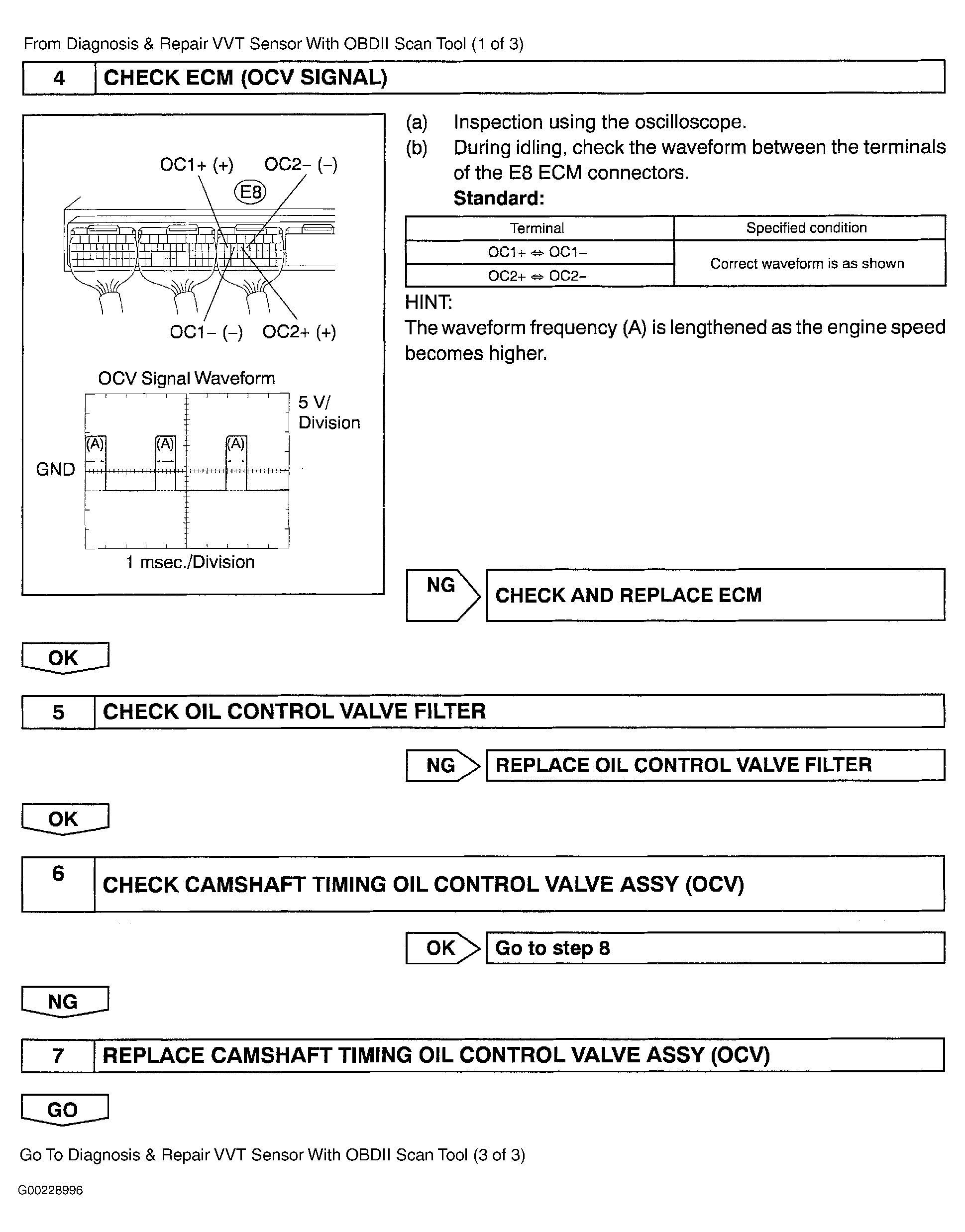

Fig 3: Diagnosis & Repair Of VVT Sensor (3 Of 3)
