WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
For wiring diagram, see Figure. For diagnosis and repair, see Fig 1 and Fig 2
.

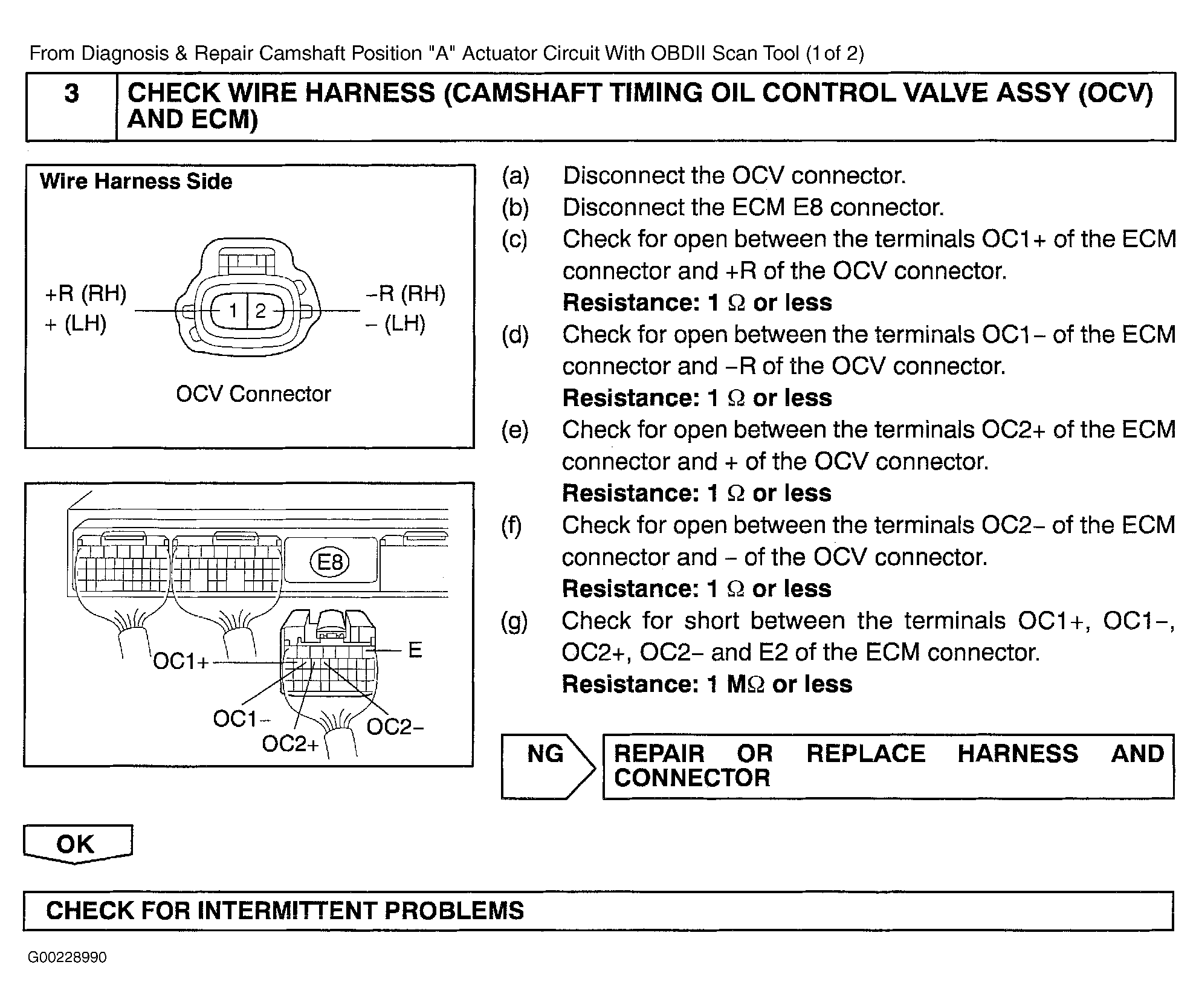

Fig 1: Diagnosis & Repair Of Camshaft Position "A" Actuator Circuit (1 Of 2)
