How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshooting in accordance with the procedures in Fig 1.

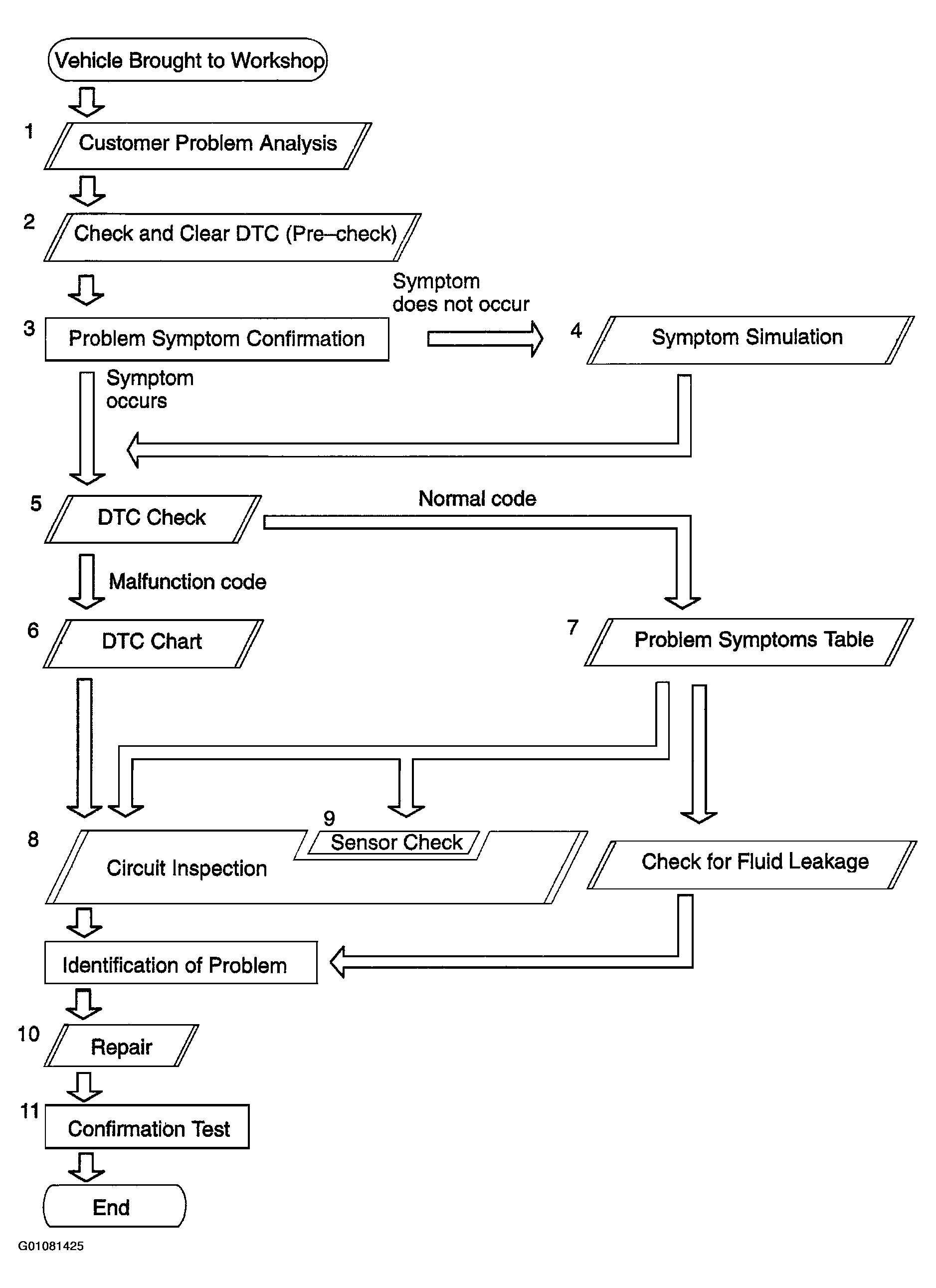

Fig 1: Troubleshooting Flowchart
G01081425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
