Home >> Toyota >> 2001 >> Sienna CE >> Repair and Diagnosis >> External Pages >> Different car >> Section 367 (Anti-Lock Brake System - Diagnostics) >> Circuit Inspection >> DTC C1241/41, IG Power Source Circuit >> Circuit Description

Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

This is the power source for the ECU, hence for the CPU, and actuator.

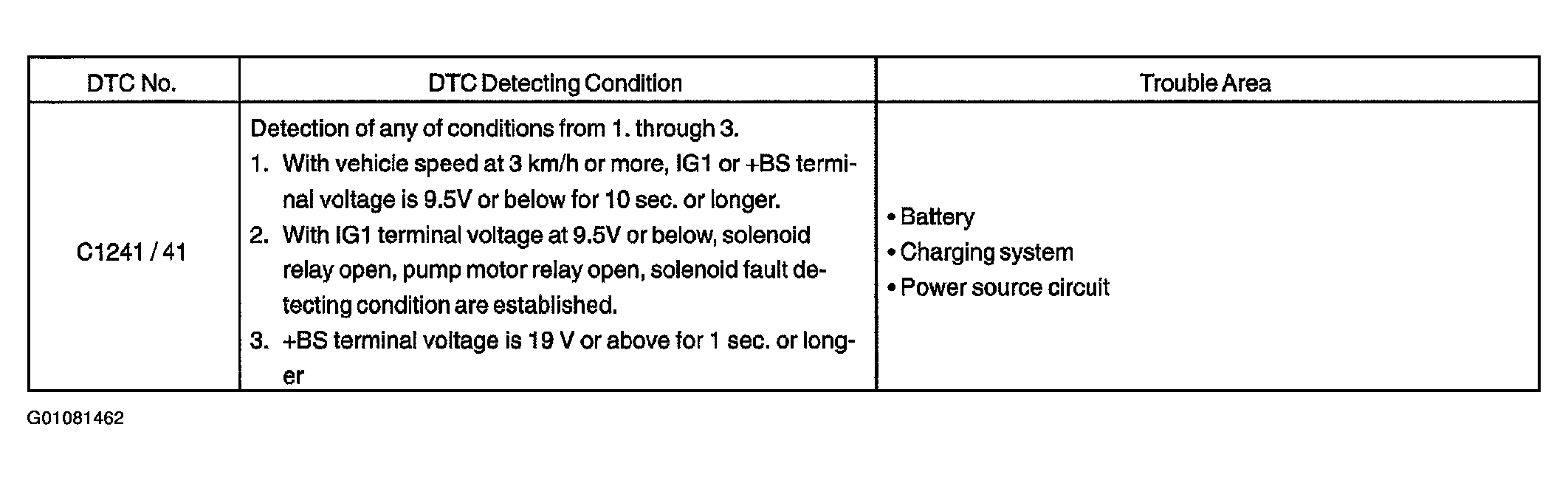

Fig 1: Identifying IG Power Source Circuit DTC's & Trouble Areas
G01081462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
