Circuit Description
WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

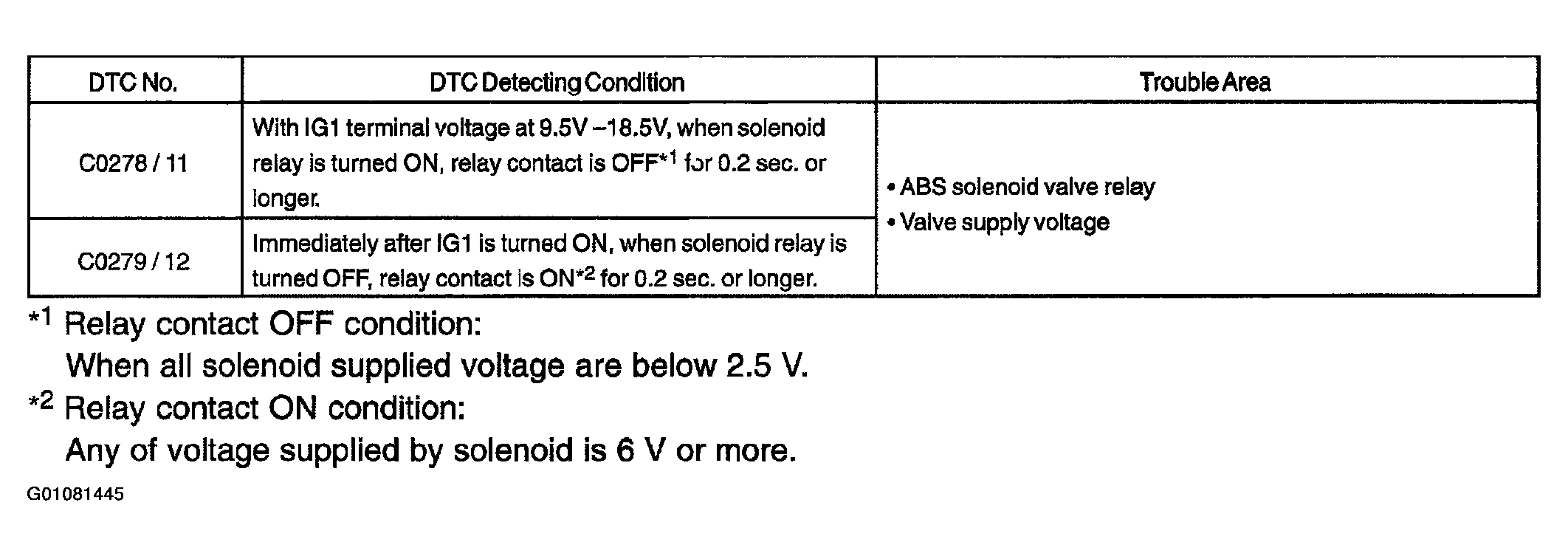

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is the relay goes on.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
