Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

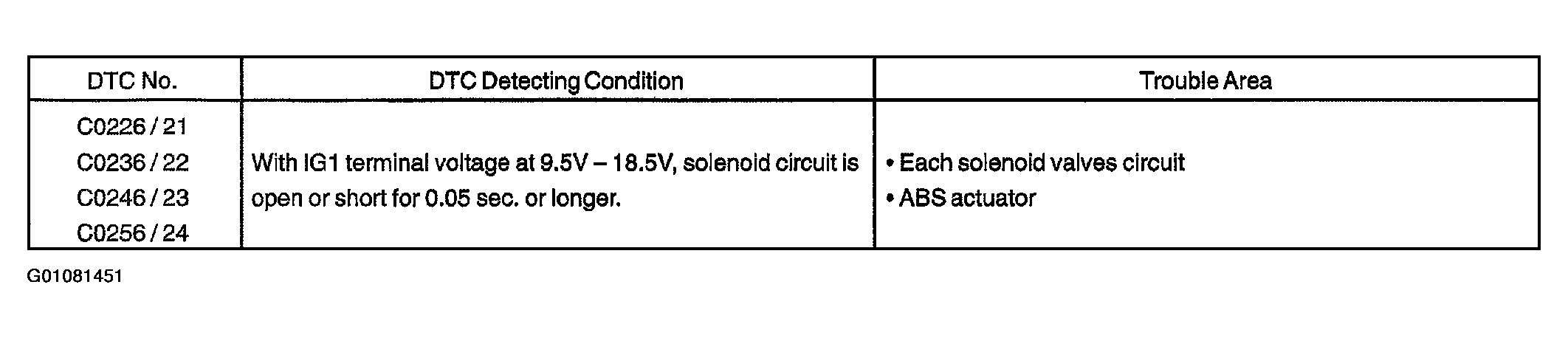

Fig 1: Identifying ABS Solenoid Valve Circuit DTC's & Trouble Areas

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

DTC No. C0226/21 is for right front solenoid valve.

DTC No. C0236/22 is for left front solenoid valve.

DTC No. C0246/23 is for right rear solenoid valve.

DTC No. C0256/24 is for left rear solenoid valve.
