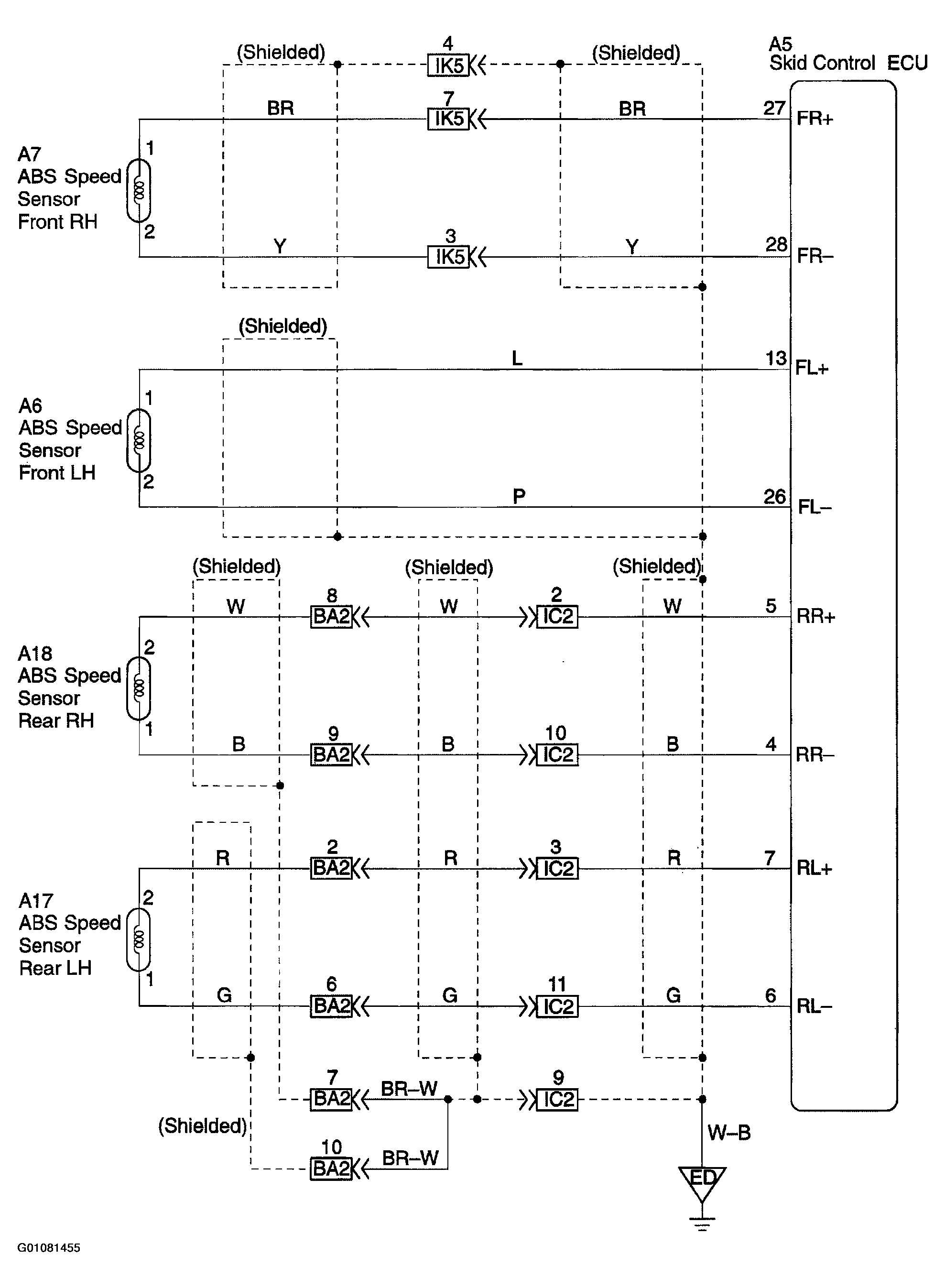

DTC C0200/31-C0215/34 Speed Sensor Circuit, DTC C1235/35-C1239/39 Speed Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
