Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

This is the power source for the ECU, hence for the CPU and the actuator.

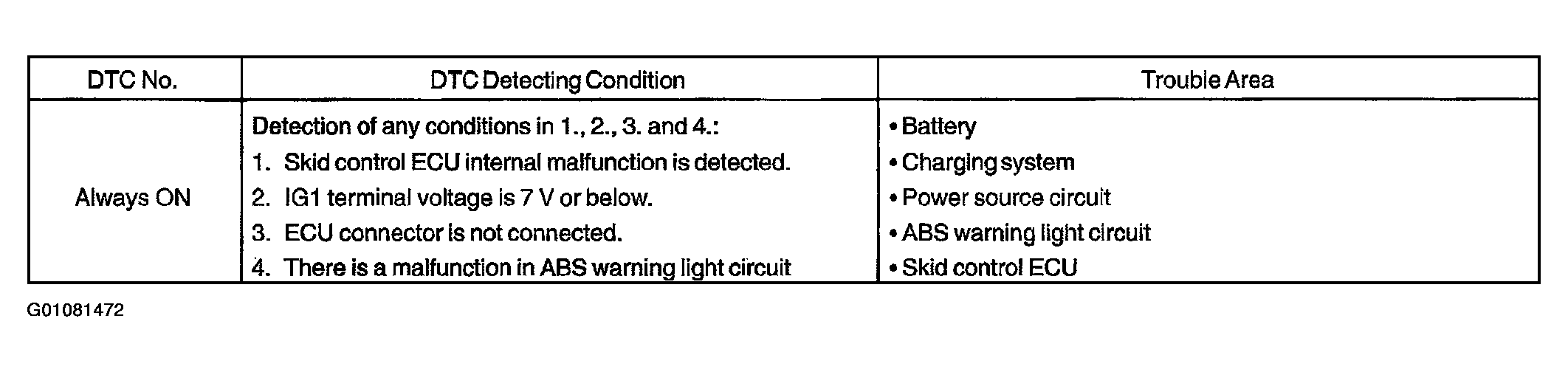

Fig 1: Identifying ALWAYS ON DTC's & Trouble Areas
G01081472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
