Check For Fluid Leakage

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

Check for fluid leakage from actuator or hydraulic lines.

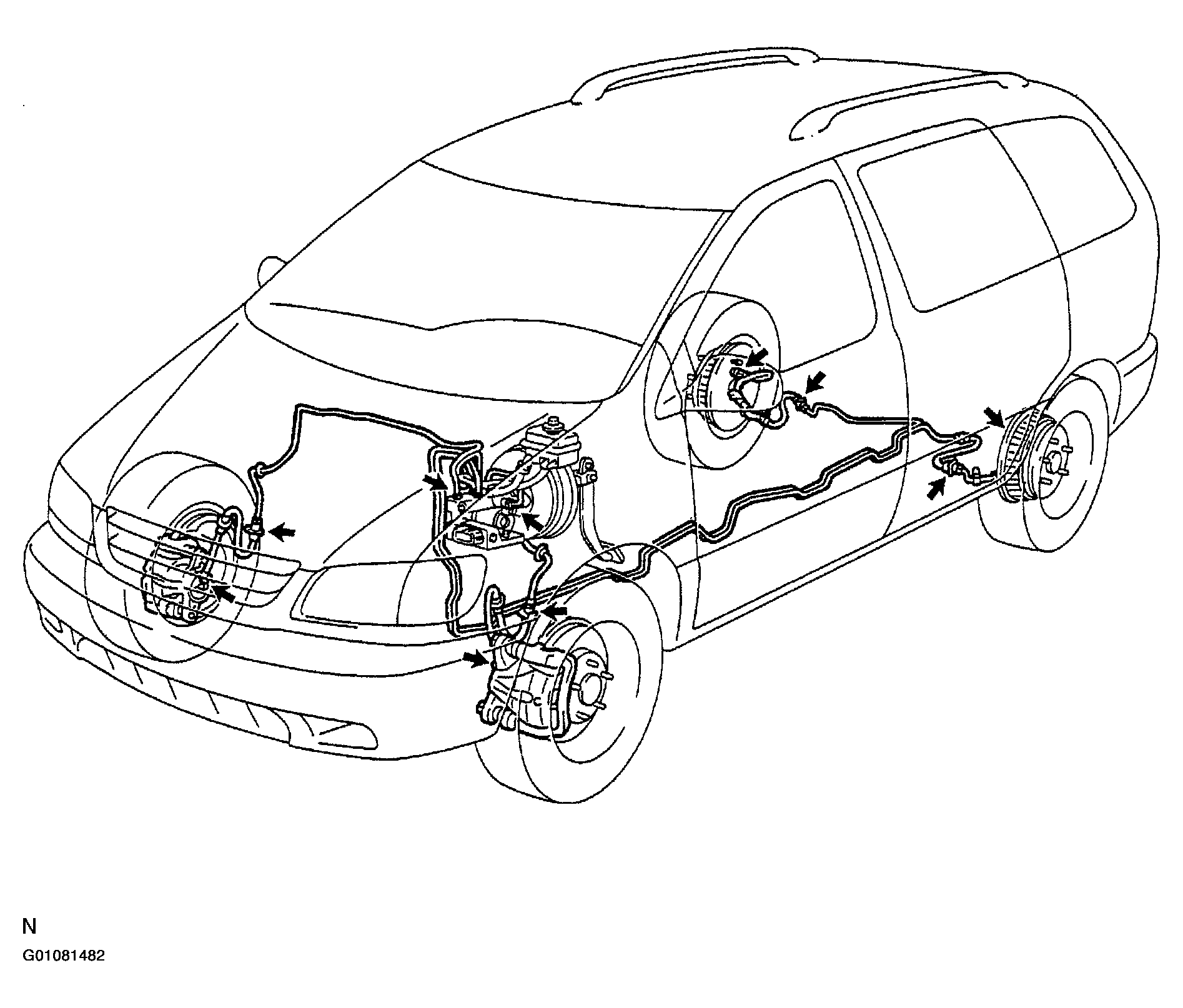

Fig 1: Identifying Likely Brake Fluid Leakage Points
G01081482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
