Brake Warning Light Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

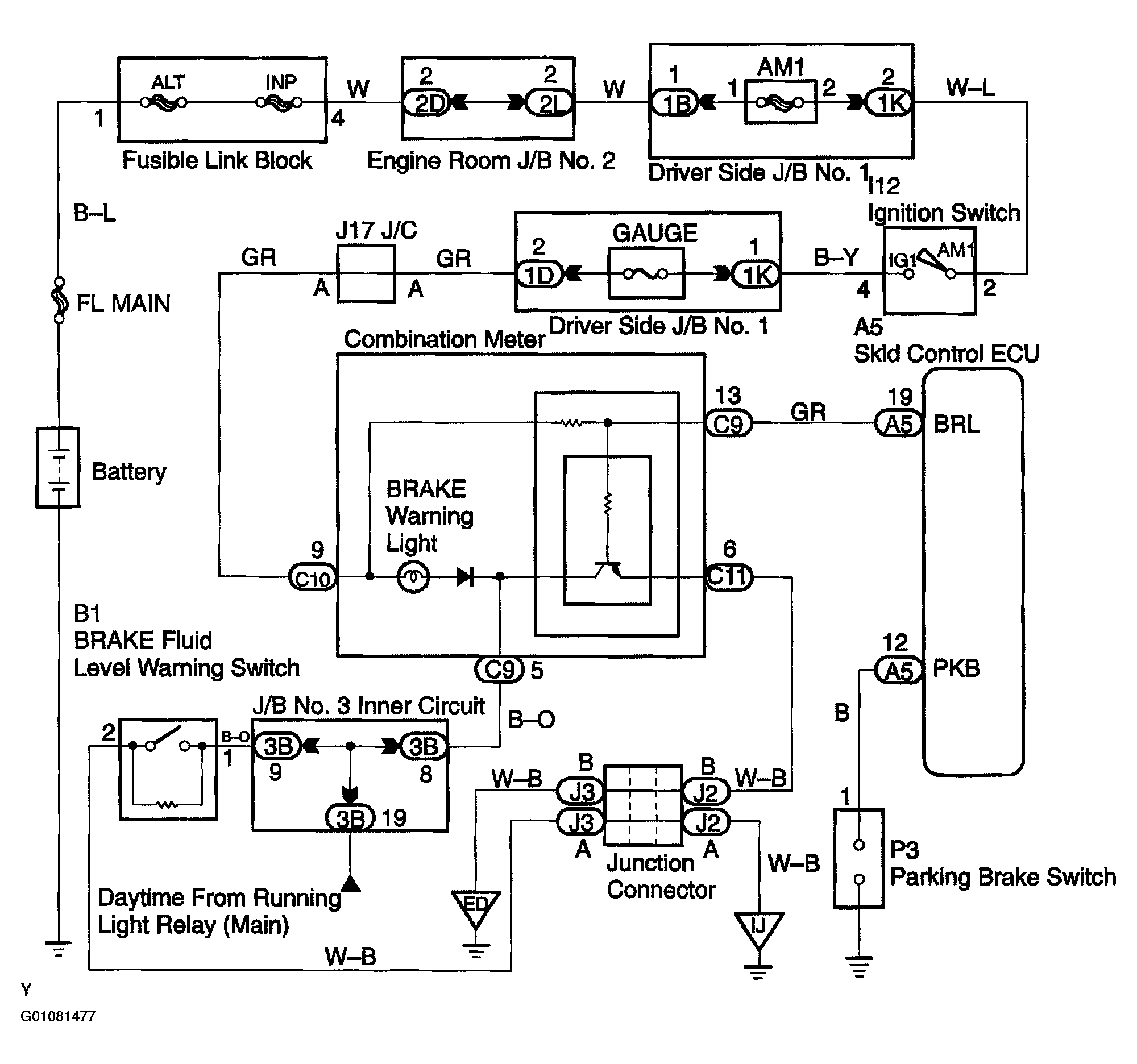

Fig 1: Brake Warning Light Circuit
G01081477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
