Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Inspect sliding roof drive gear (sliding roof ECU) .
1. Inspect relay operation
  1. Disconnect the connector from the sliding roof ECU and inspect the connector on the wire harness side.

    Fig 1: Identifying Sliding Roof ECU Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

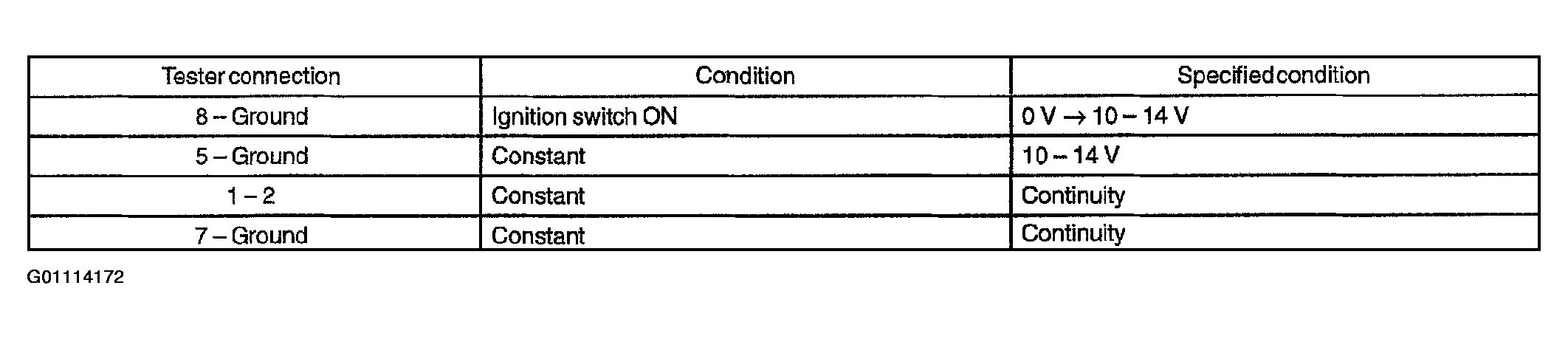

  Fig 2: Reviewing Sliding Roof ECU Specifications (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the circuit is not as specified, inspect the circuits connected to other part.
2. Connect wire harness side connector to sliding roof and inspect connector from the back side

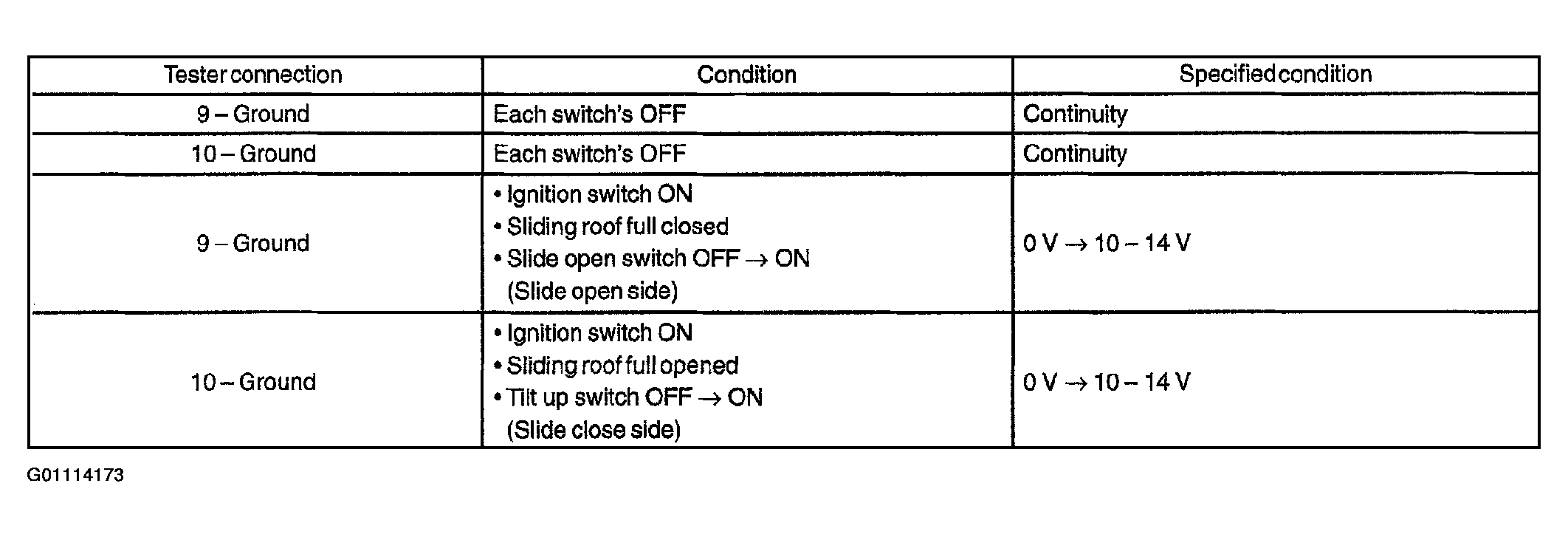

  Fig 3: Reviewing Sliding Roof ECU Specifications (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the circuit is not specified, inspect the circuits connected to the other parts.
