Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

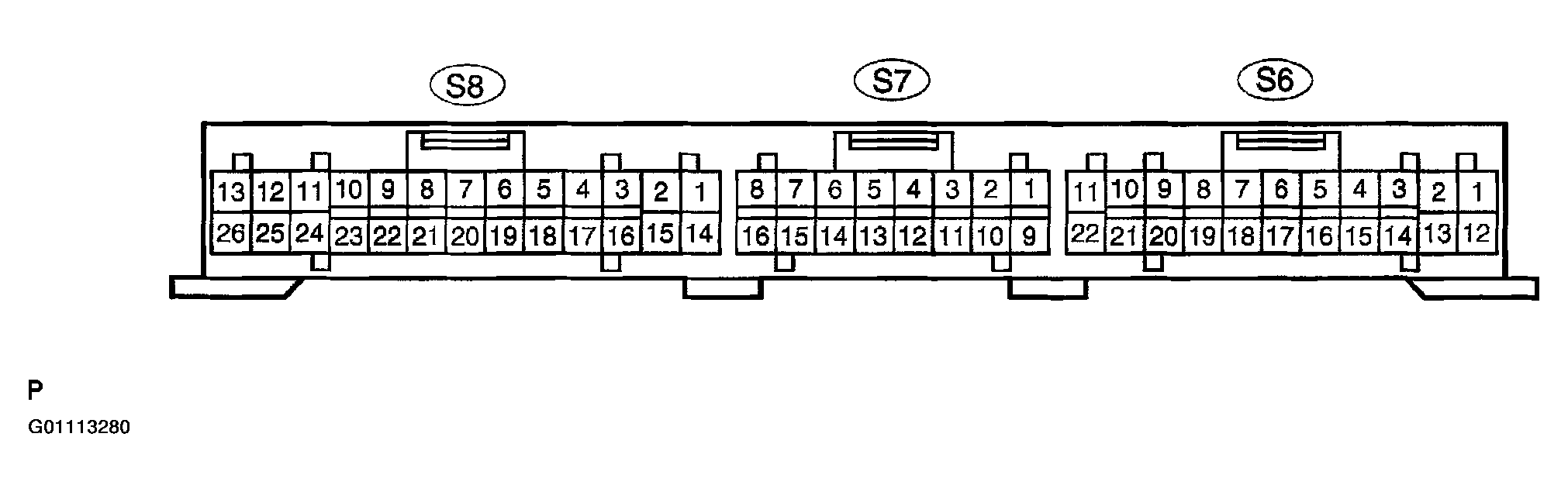

Fig 1: Identifying ECU Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

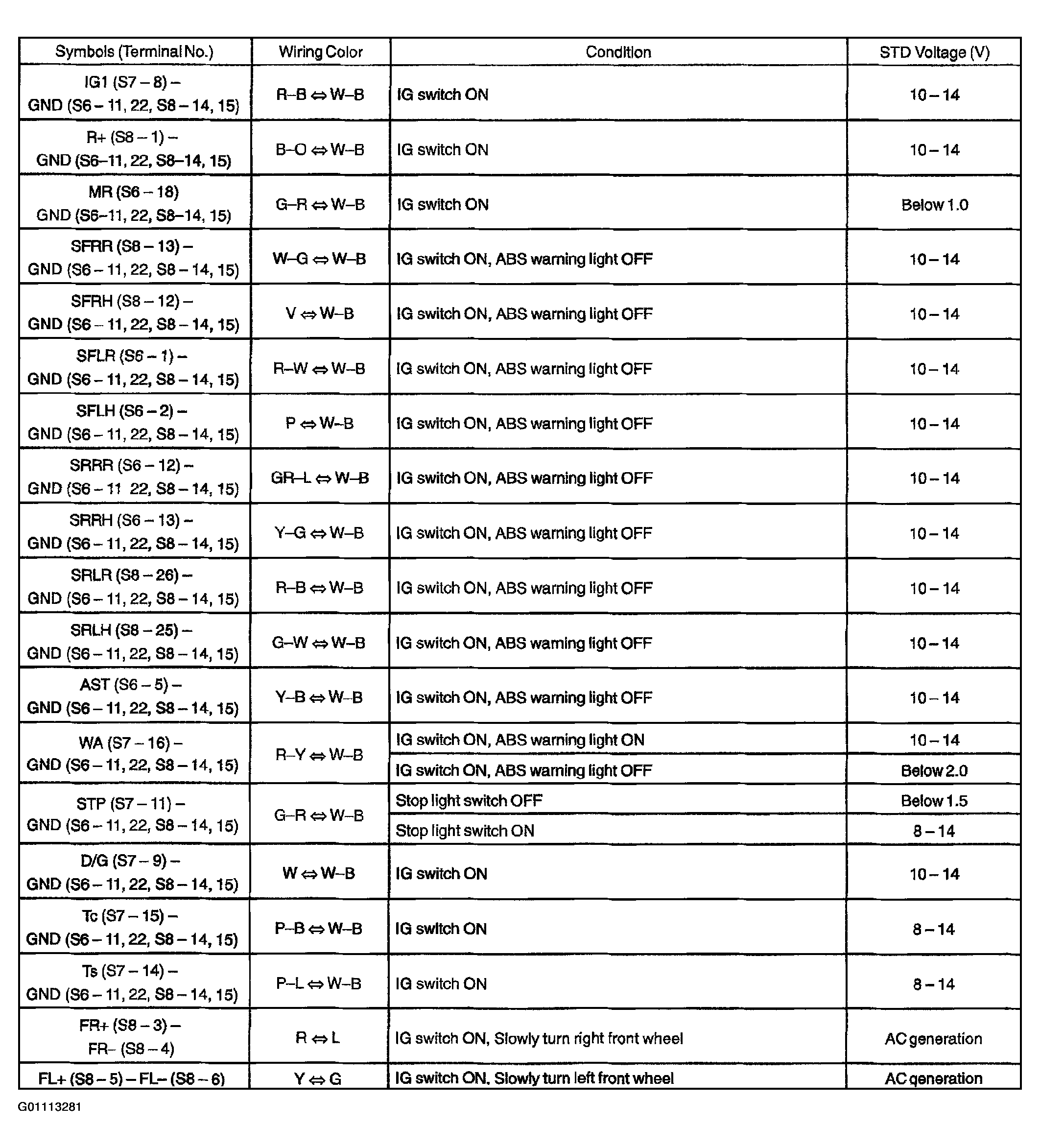

Fig 2: Reviewing ECU Terminal Information (1 Of 2)

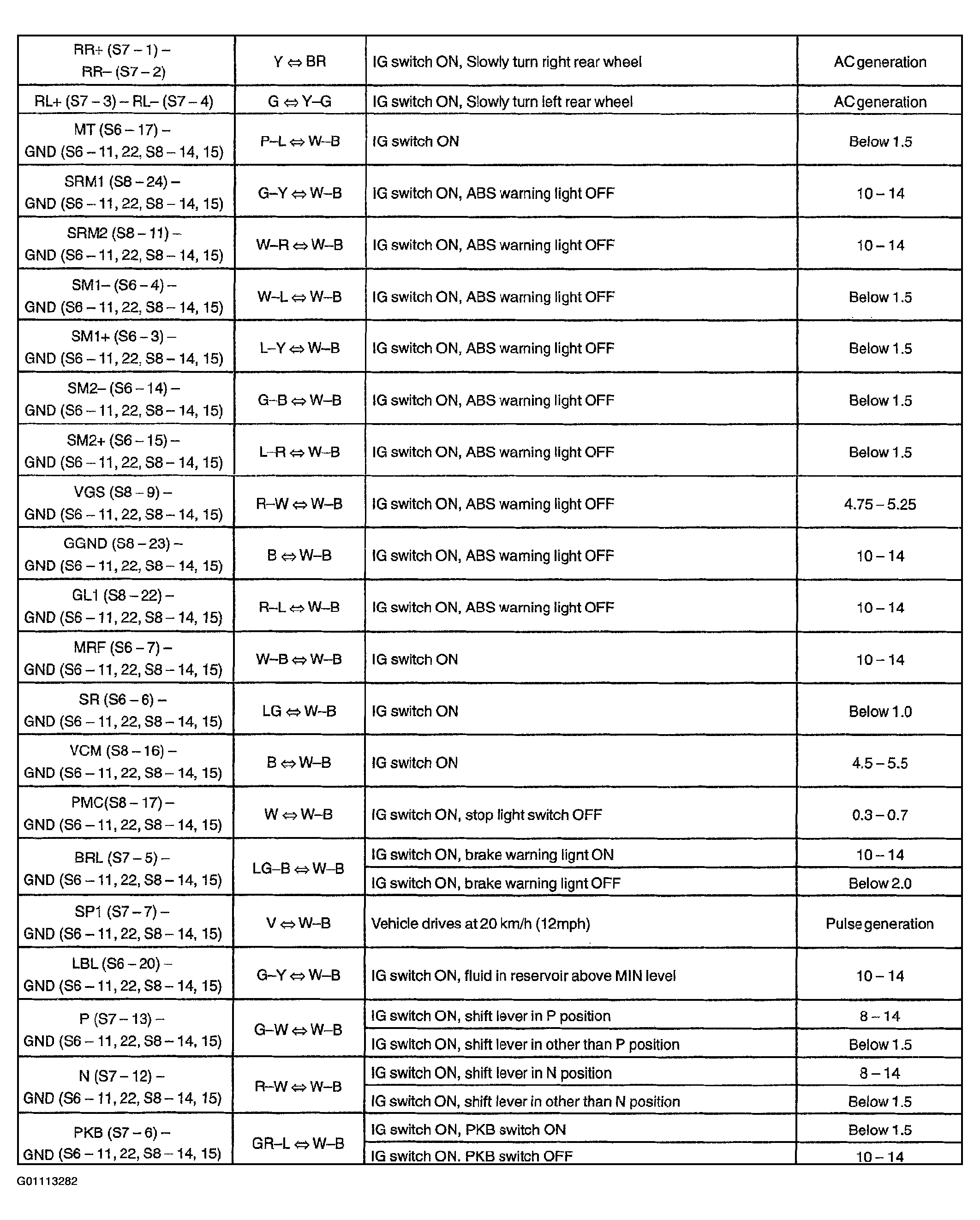

Fig 3: Reviewing ECU Terminal Information (2 Of 2)
