Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

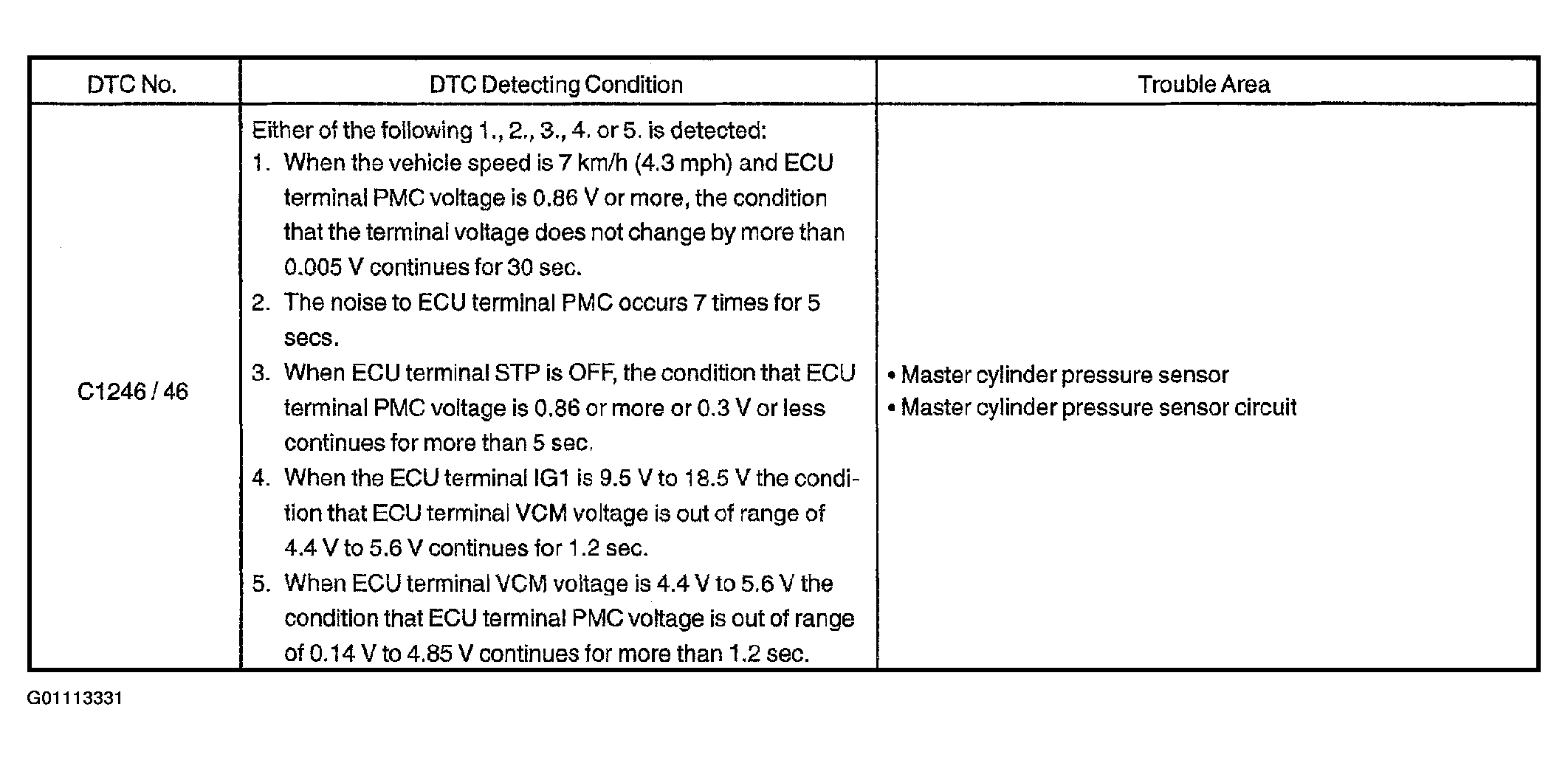

Fig 1: Reviewing Master Cylinder Pressure Sensor Information
G01113331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
