Inspection Procedure

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Start the inspection from step  1 in case of using the TOYOTA hand-held tester and start from step  2 in case of not using the TOYOTA hand-held tester.
  1. Do Active Test Of Toyota Hand-Held Tester (ABS Solenoid Relay Operation)
    1. Select the ACTIVE TEST mode on the TOYOTA hand-held tester.
    2. Check the operation sound of the ABS solenoid relay when operating it with the TOYOTA hand-held tester.
      1. OK: The Operation Sound Of The ABS Solenoid Relay Should Be Heard.
    1. OK: Go To Step   4
    2. NG: Go To Next Step  .
  2. Check Terminal Voltage
    1. Remove the ABS solenoid relay from engine room R/B.
    2. Measure the voltage between terminal 1 of engine room R/B (for ABS solenoid relay) and body ground.
      1. OK: Voltage: 10-14 V
      Fig 1: Checking ABS Solenoid Relay Voltage
      G01113317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go To Step   8
    2. OK: Go To Next Step  .
  3. Inspect ABS Solenoid Relay

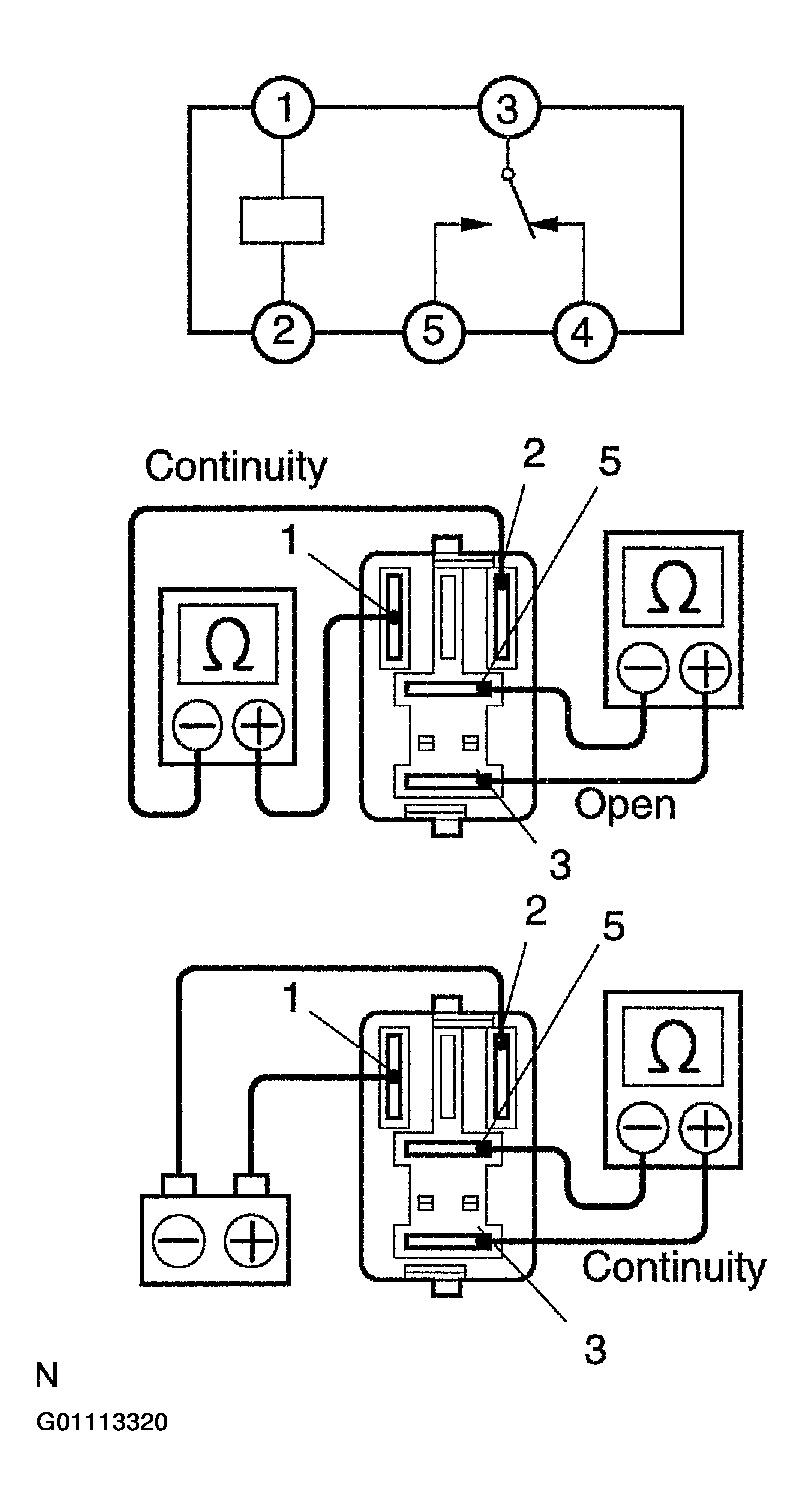

      Fig 2: Checking ABS Solenoid Relay For Continuity
      G01113320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check continuity between each terminal of ABS solenoid relay.

      OK:  See specifications in Fig 3.

      Fig 3: Reviewing ABS Solenoid Relay Continuity Information (1 Of 2)
      G01113318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery positive voltage between terminals 1 and 2.
    3. Check continuity between terminals 3 and 5 of ABS motor relay.

      OK:  See specifications in Fig 4.

      Fig 4: Reviewing ABS Solenoid Relay Continuity Information (2 Of 2)
      G01113319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Go To Next Step  .
    2. NG: Replace ABS Solenoid Relay
  4. Check Continuity (ABS Solenoid Relay - Skid Control ECU)
    1. Disconnect the connector (S13) from the skid control ECU.
    2. Check continuity between terminal 3 of engine room R/B (for ABS solenoid relay) and terminal AST of skid control ECU.
      1. OK: Continuity

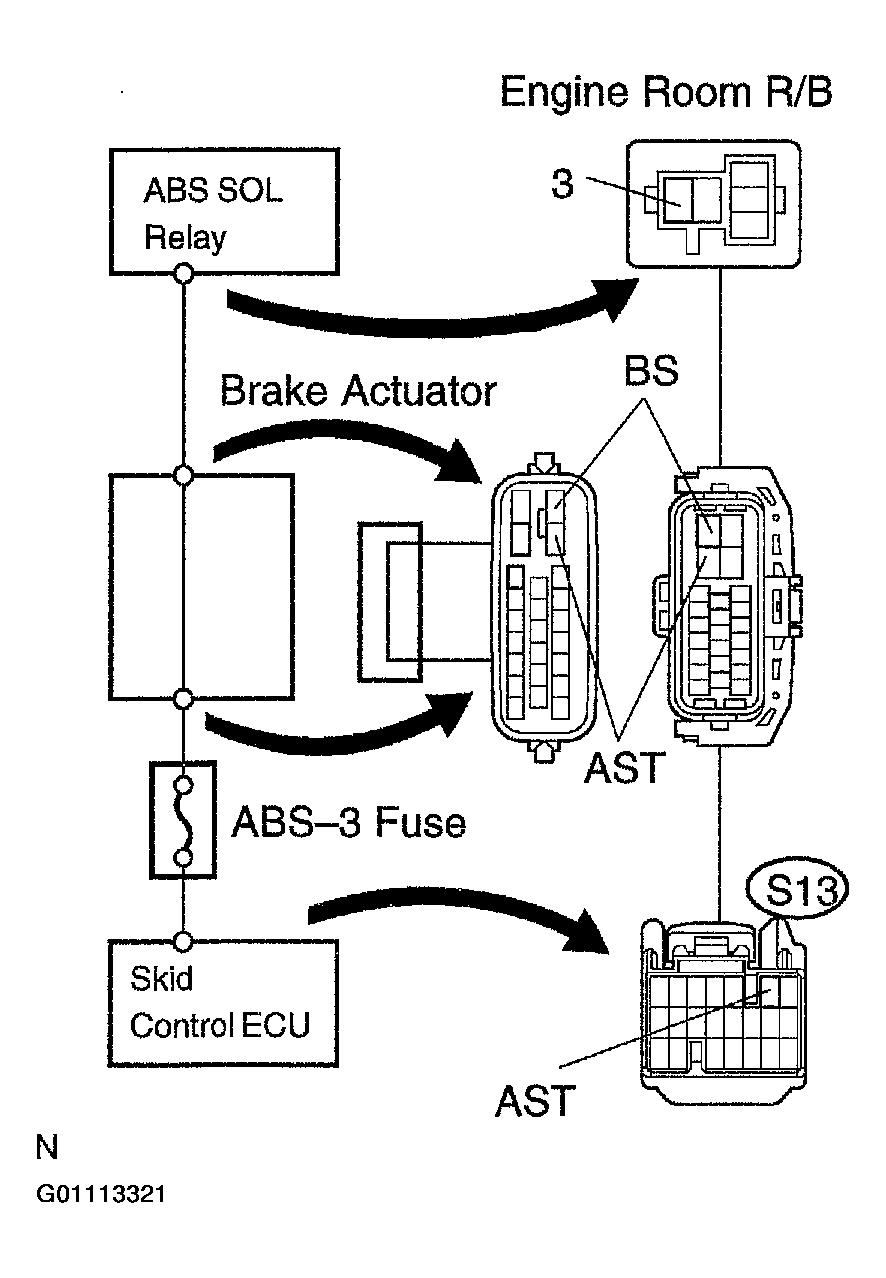

      Fig 5: Checking Skid Control ECU For Continuity
      G01113321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Go To Next Step  .
    2. NG: Repair Or Replace Harness Or Brake Actuator Assy.
  5. Check Harness And Connector (ABS Solenoid Relay - Skid Control ECU).  See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS .
    1. OK: Go To Next Step  .
    2. NG: Repair Or Replace Harness Or Connector
  6. Check DTC Once More (See  PRE-CHECK  )
    Fig 6: Reviewing DTC Malfunction & Normal Code Information
    G01113322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. A : Go To Next Step  .
    2. B : No Problem
  7. Check Contact Condition (Each Connection)
    1. OK: Check And Replace Skid Control ECU Assy.
    2. NG: Check And Repair Harness And Connector
  8. Inspect Fuse (ABS 1 Of FL Block)
    1. Remove ABS1 fuse from the FL BLOCK.
    2. Check continuity of ABS1 fuse.
      1. OK: Continuity
      Fig 7: Checking ABS1 For Continuity
      G01113323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Check And Repair Harness Or Connector
    2. NG: Replace Fuse
