Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

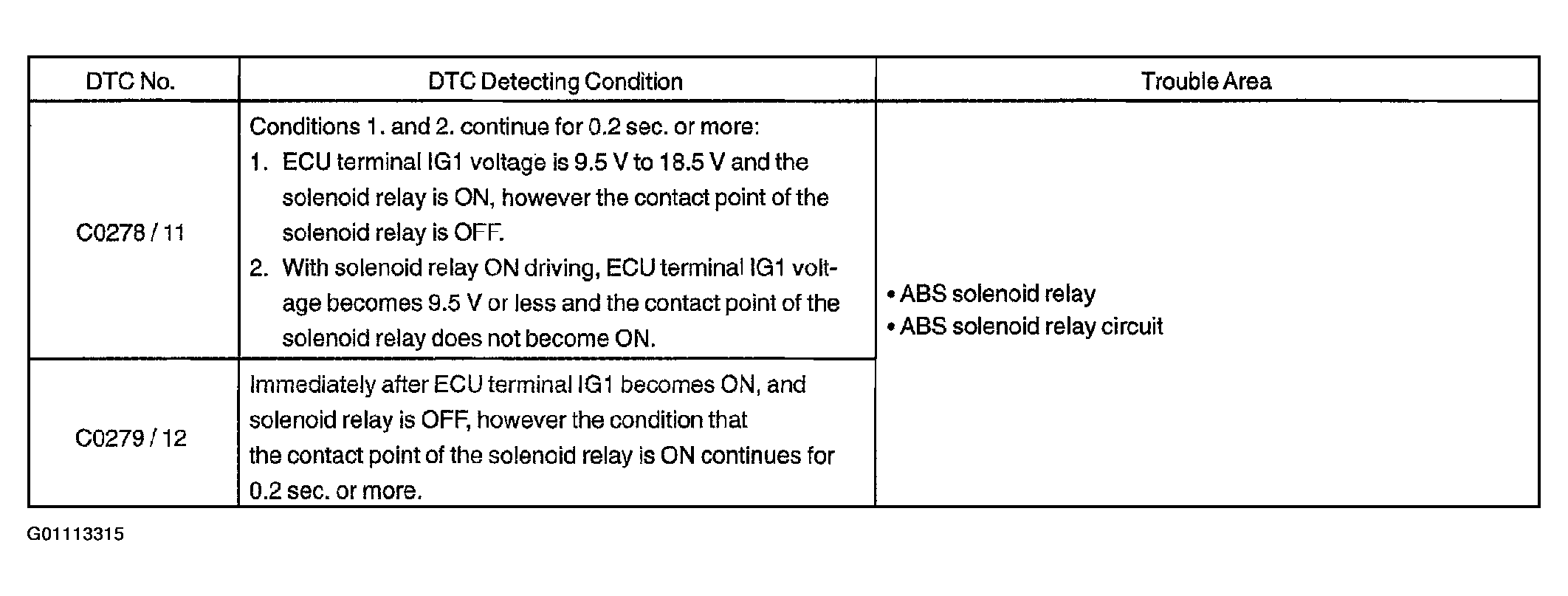

Fig 1: Reviewing DTC Information For ABS Solenoid Relay
G01113315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
