Circuit Description
WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

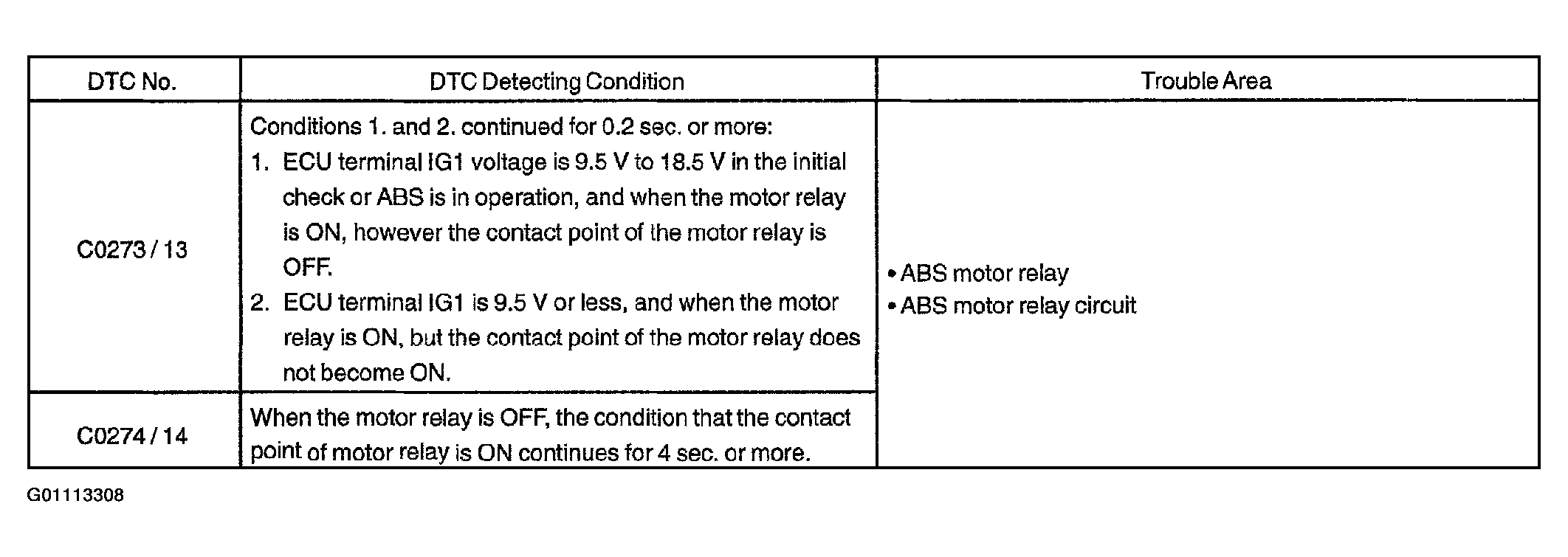

The ABS motor relay supplies power to the ABS pump motor. While the ABS & BA are activated, the ECU switches the motor relay ON and operates the ABS pump motor.
