Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying ECU Terminals For Connectors A7-A9

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

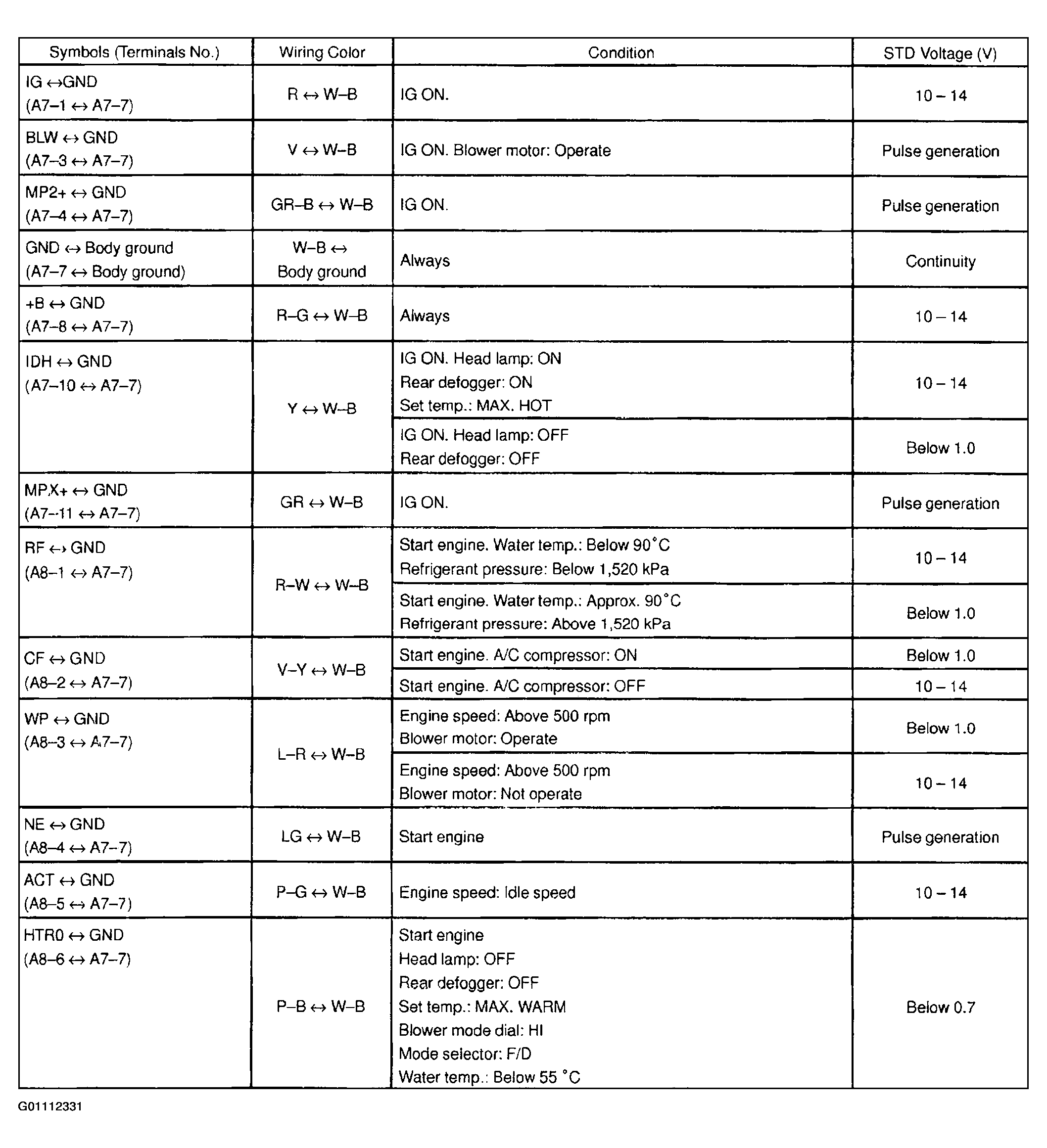

Fig 2: ECU Terminal Specifications (1 Of 2)

Fig 3: ECU Terminal Specifications (2 Of 2)
