Inverter Radiator Removal
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
- Drain HV coolant . See Step 2) Replace Coolant in HYBRID TRANSAXLE ON-VEHICLE REPAIR .
- Remove FRONT BUMPER COVER .
- Disconnect ambient temperature sensor .
- Disconnect water temperature switch connector .
- Remove water temperature switch .
- Disconnect 2 water hoses .
- Remove inverter radiator
:

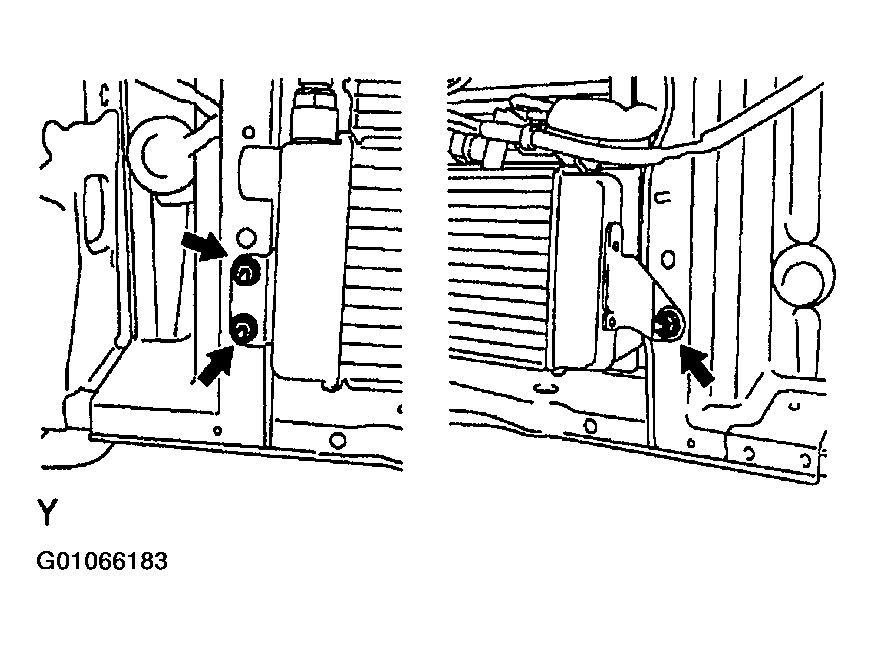

Remove the 3 nuts and inverter radiator.
