HV Water Pump Removal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain HV coolant  . See Step 2)  Replace Coolant in HYBRID TRANSAXLE ON-VEHICLE REPAIR .
  2. Remove FRONT BUMPER COVER .
  3. Remove LH heat light  .
  4. Remove HV water pump  :
    1. Disconnect the connector for HV water pump.
    2. Disconnect the 2 water hoses from the HV water pump.
    3. Remove the 2 bolts and HV water pump.

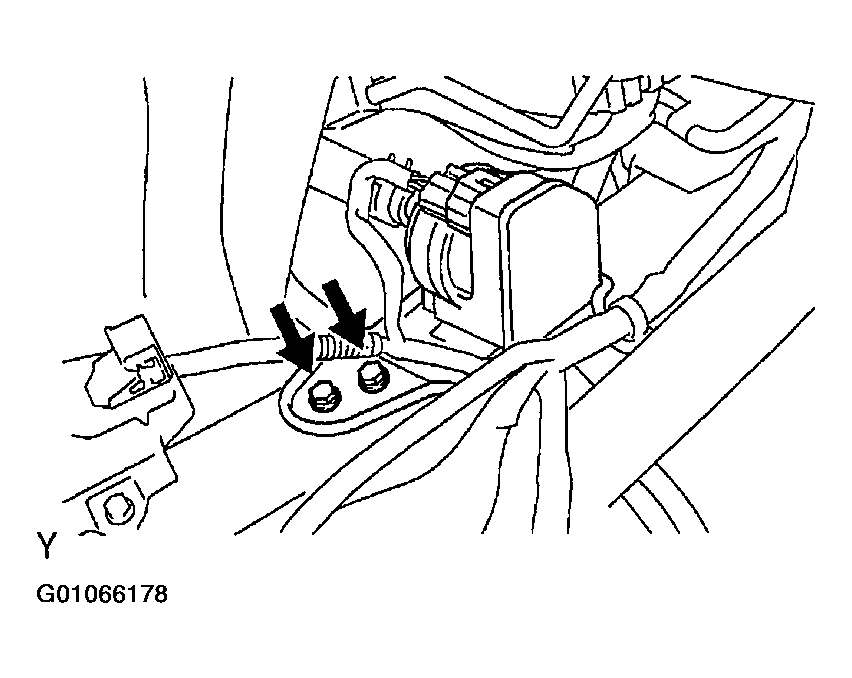

      Fig 1: Identifying Hybrid Vehicle (Heater) Water Pump Mounting Bolts
      G01066178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
