HV Battery Components

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

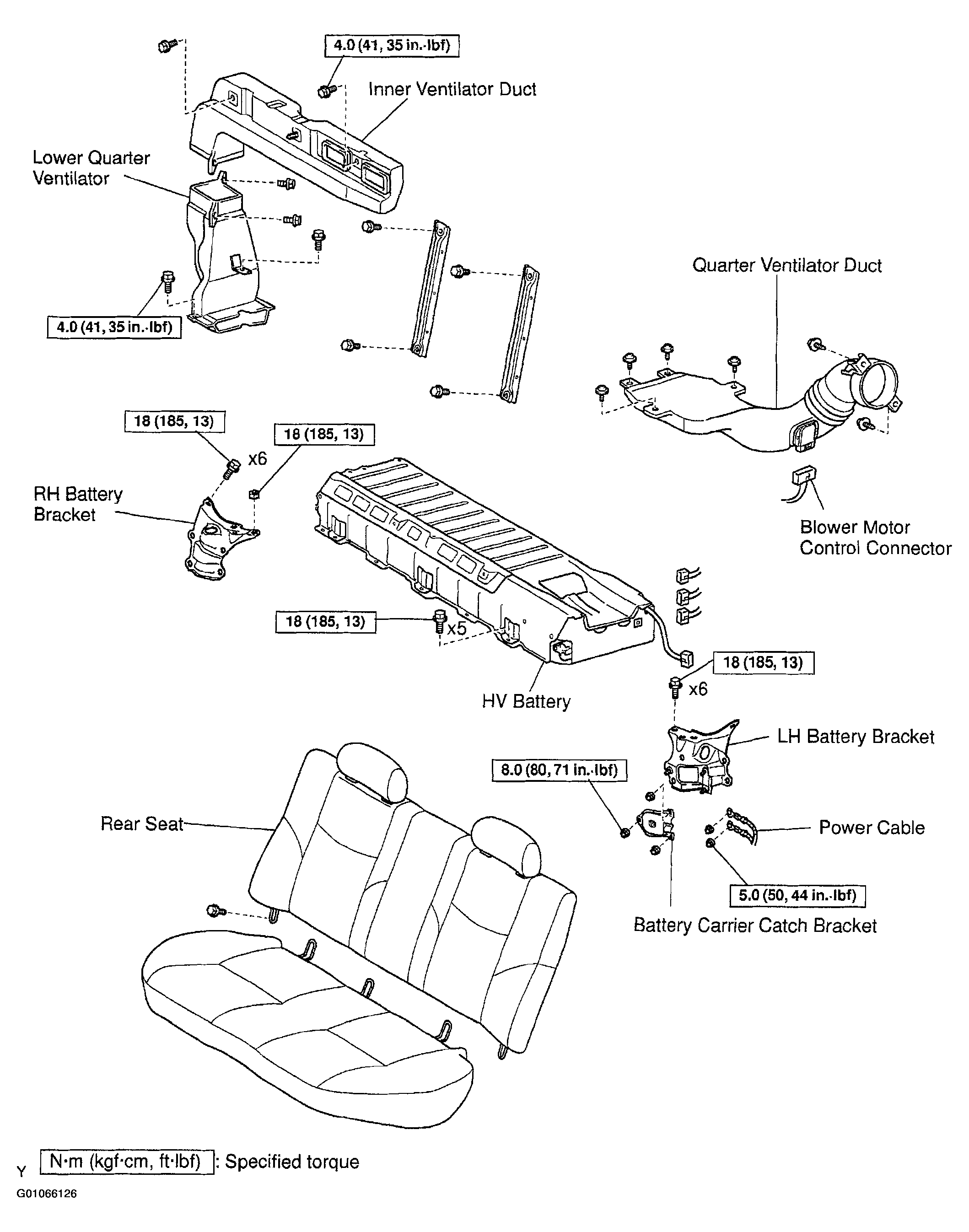

Fig 1: Locating Hybrid Vehicle Battery & Related Components (1 Of 2)
G01066126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

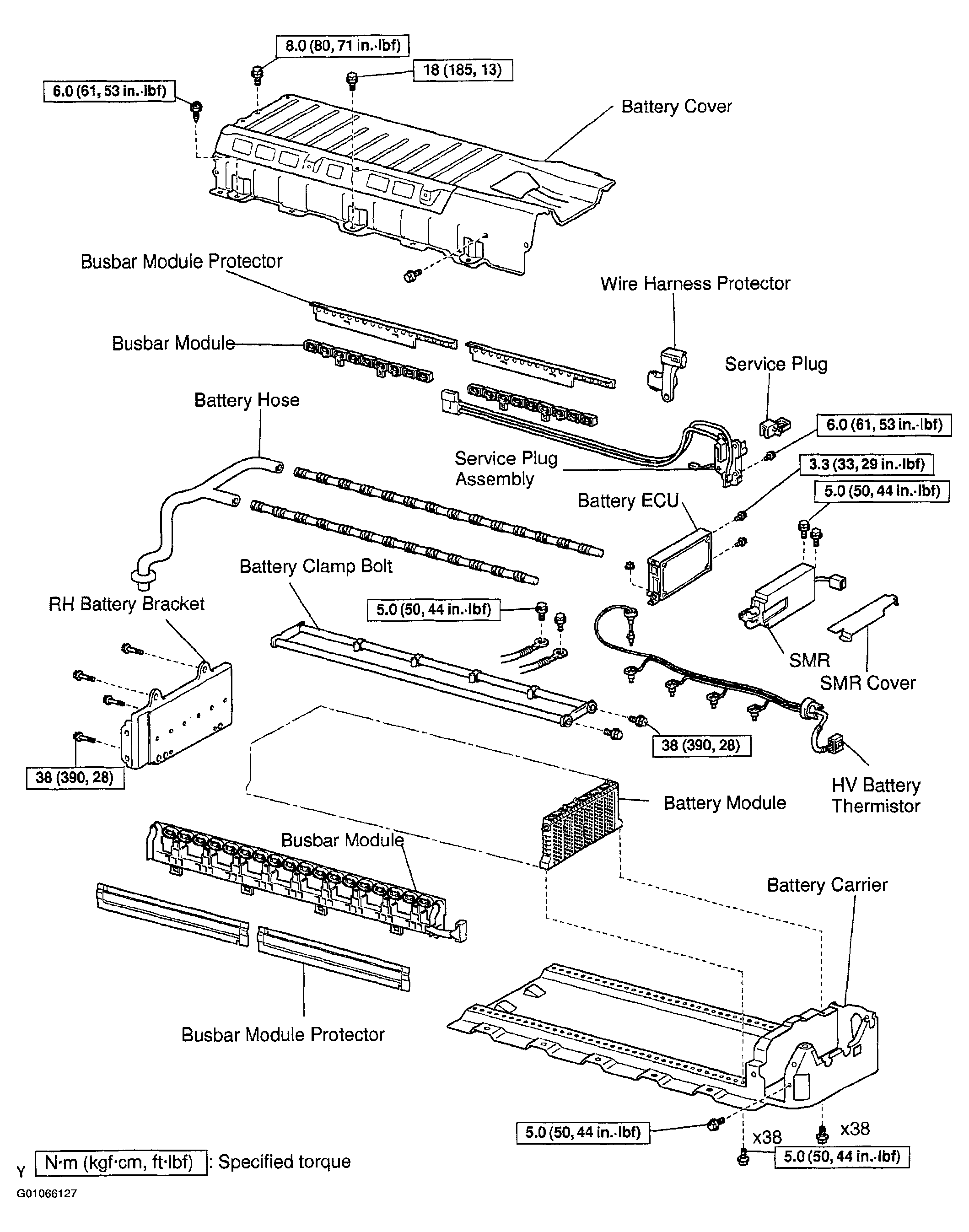

Fig 2: Locating Hybrid Vehicle Battery & Related Components (2 Of 2)
G01066127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
