HV Battery Cooling: Removal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR SEAT .
Remove LUGGAGE TRIM .
Remove inner ventilator duct .
Remove the 4 bolts and inner ventilator duct.
Remove lower quarter ventilator duct .
Remove the 2 bolts and lower quarter ventilator duct.

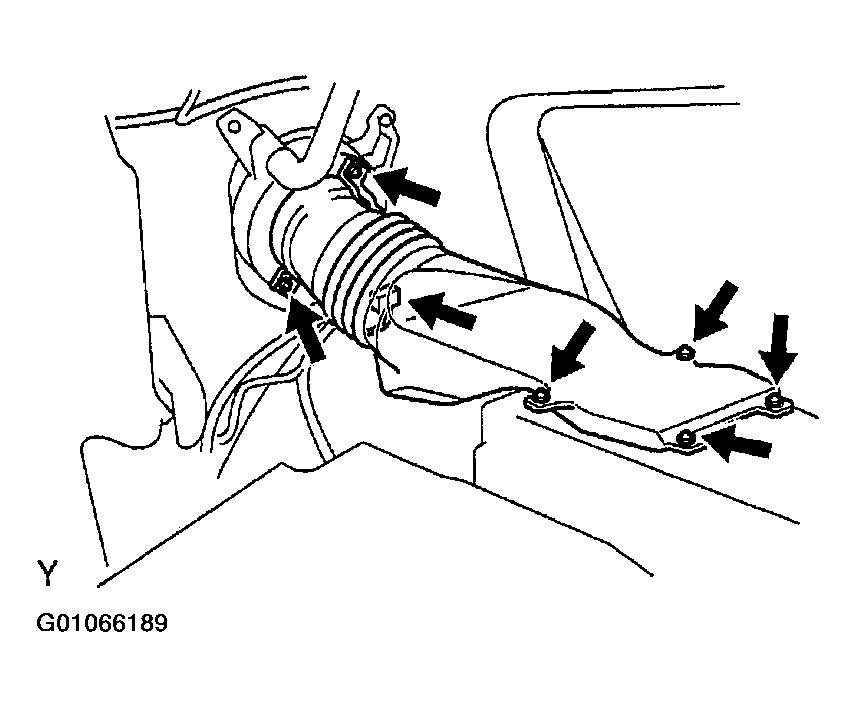

Fig 1: Identifying Lower Quarter & Inner Ventilator Duct Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove quarter ventilator duct :
1. Disconnect the connector for blower motor control.
2. Remove the 6 screws and quarter ventilator duct.

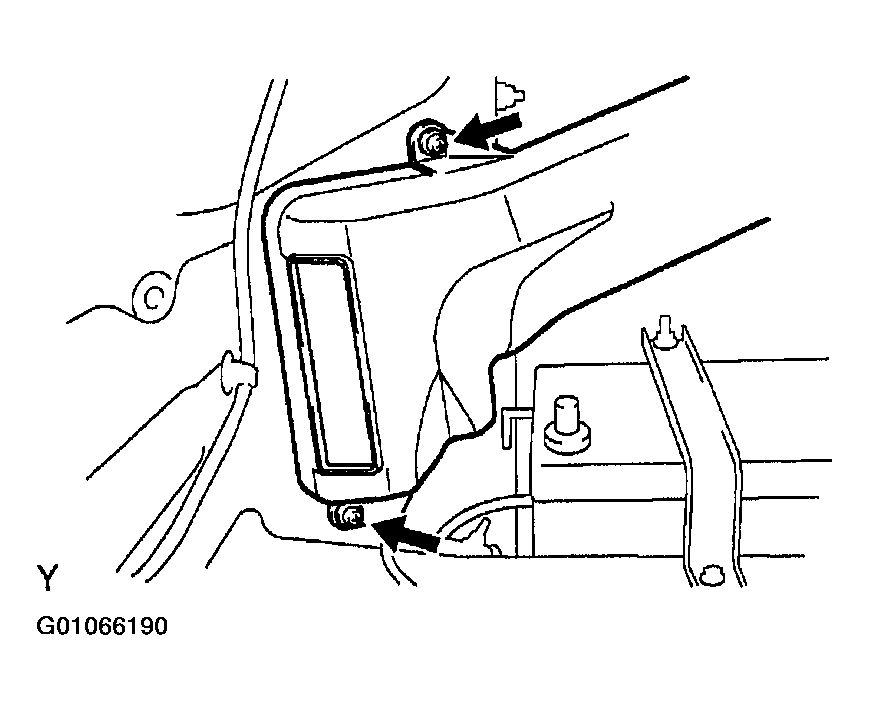

  Fig 2: Identifying Quarter Ventilator Duct Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove quarter inner No. 2 duct .
Remove the 2 screws and quarter inner No. 2 duct.

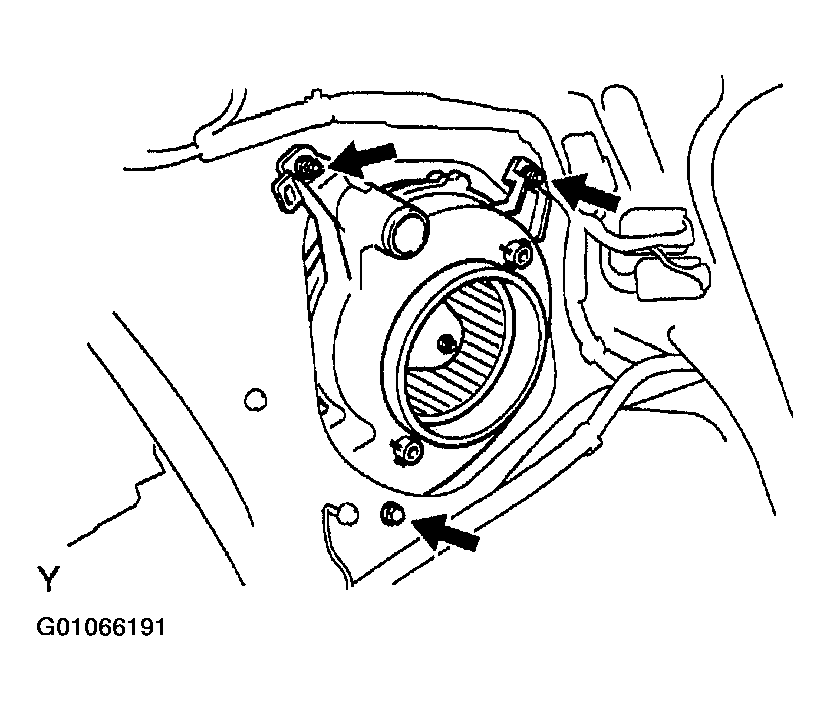

Fig 3: Identifying Quarter Inner No. 2 Duct Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove blower assembly :
1. Remove the quarter ventilation inner duct.
2. Disconnect the connector for blower motor.
3. Remove the bolt, 2 nuts and blower assembly.

  Fig 4: Identifying Blower Assembly Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
