Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Electric Motor Power Steering ECU Terminals
G01112696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

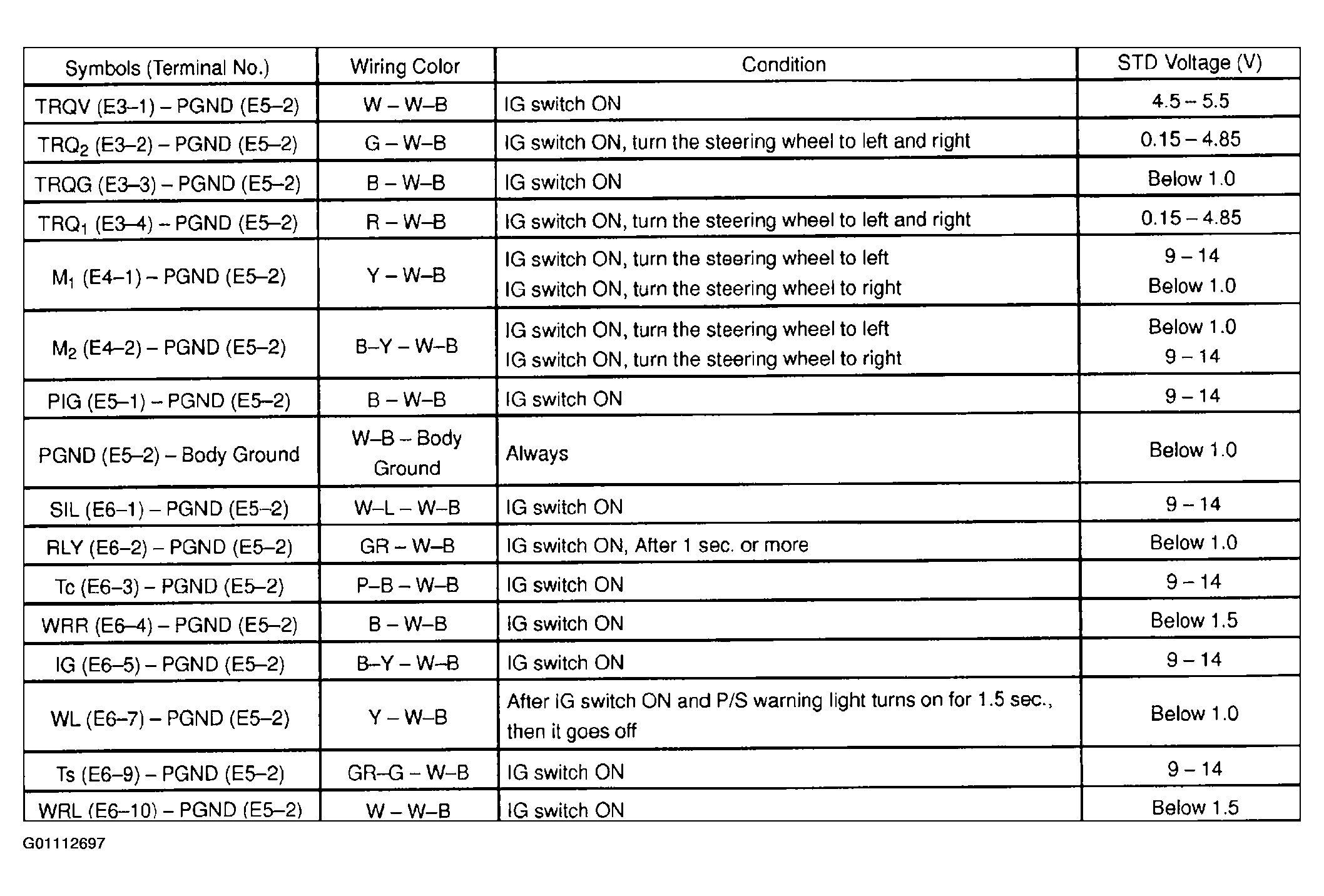

Fig 2: Electric Motor Power Steering ECU Terminal Specifications
G01112697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
