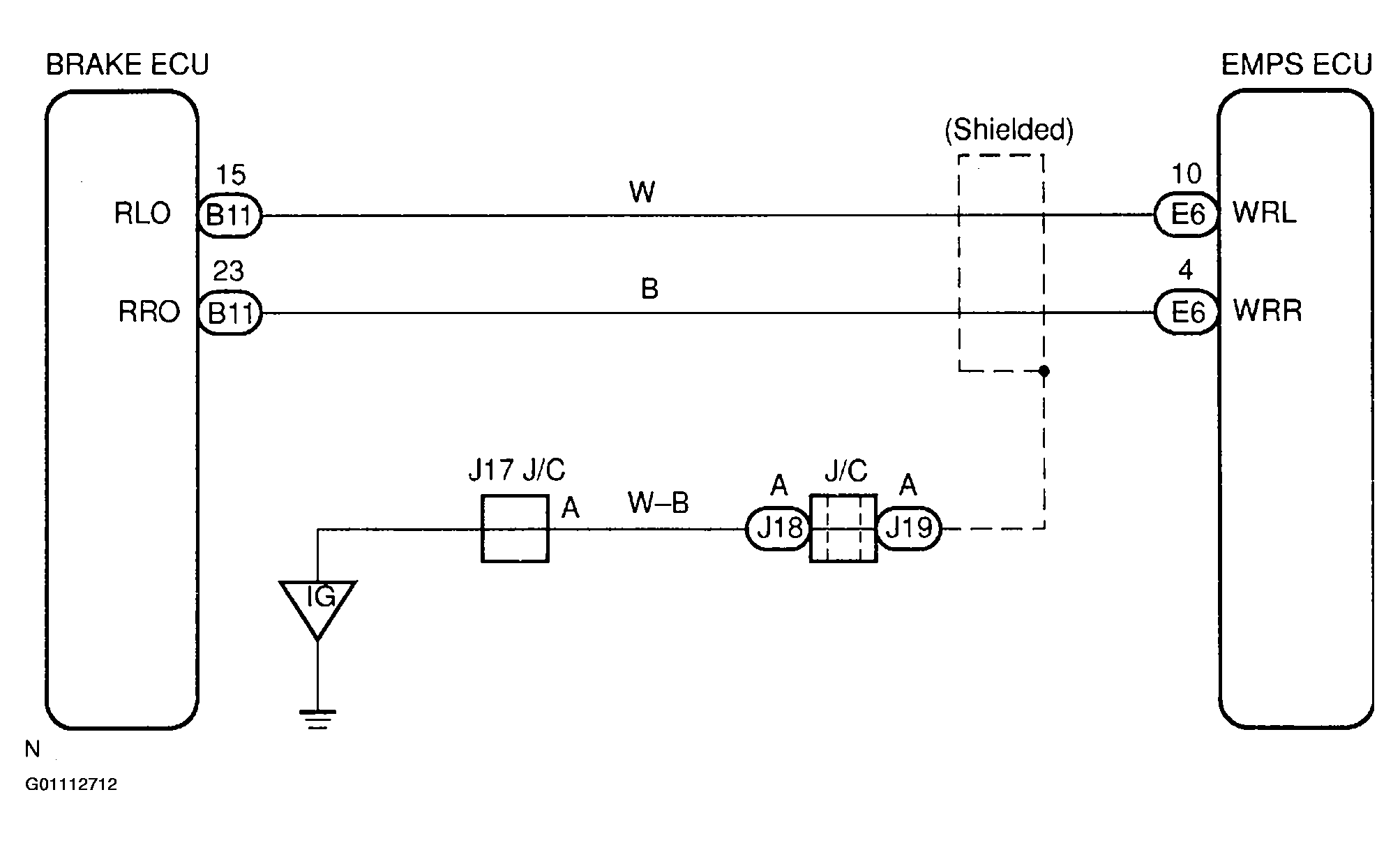

DTC C1541/41-C1543/43: Speed Sensor Malfunction & DTC C1571/71, C1572/72: Speed Sensor Malfunction (Test Mode): Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
