Step 4 - Trouble Shooting

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

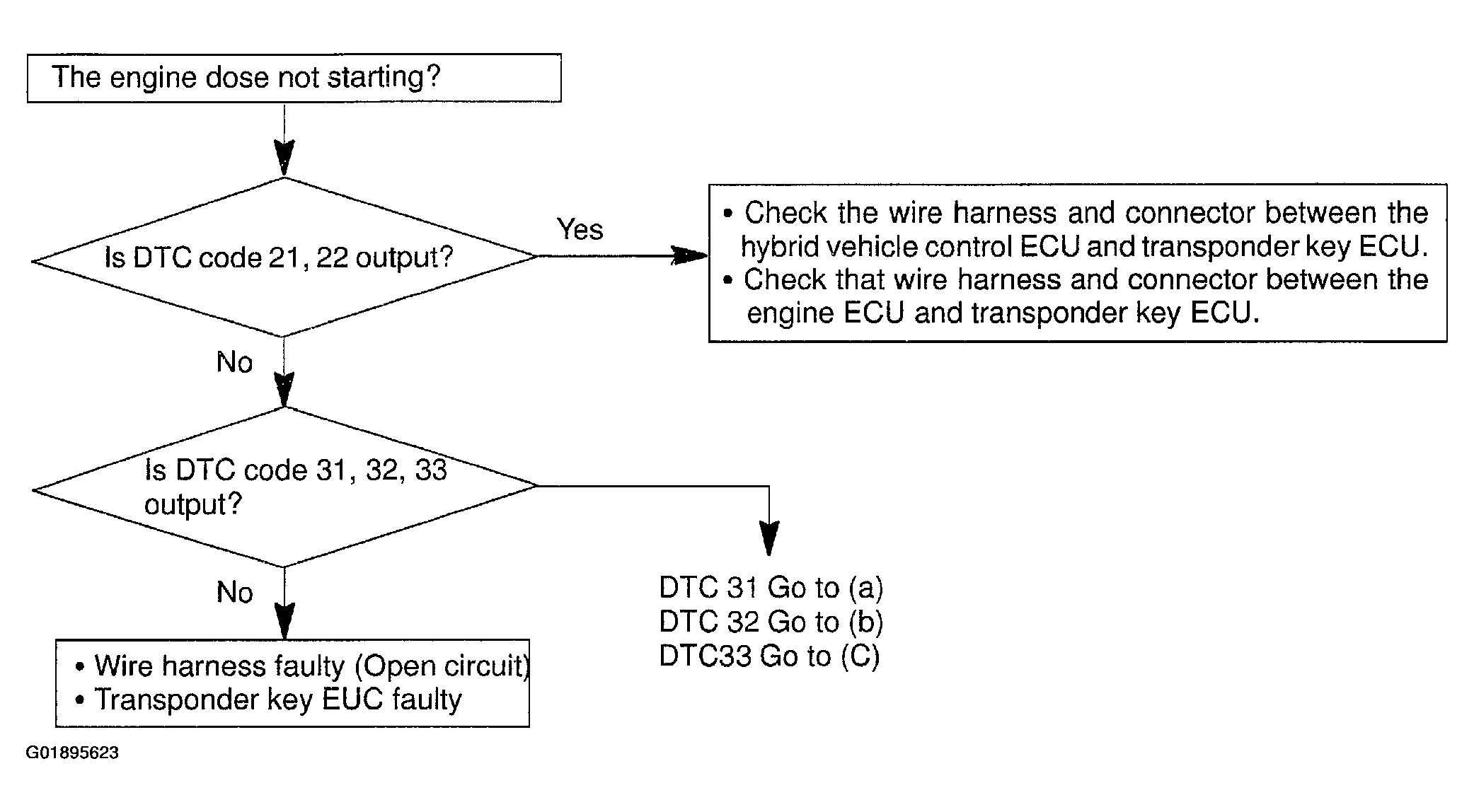

Fig 1: Determining Troubleshooting Procedure

If code 31 is output, troubleshoot according to this flow chart.

Fig 2: Troubleshooting Procedure For Code 31
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If code 32 is output, troubleshoot according to this flow chart.

Fig 3: Troubleshooting Procedure For Code 32
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If code 33 is output, troubleshoot according to this flow chart.

Fig 4: Troubleshooting Procedure For Code 33
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
