Step 3 - Transponder Key ECU Input Condition Display Malfunction List

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

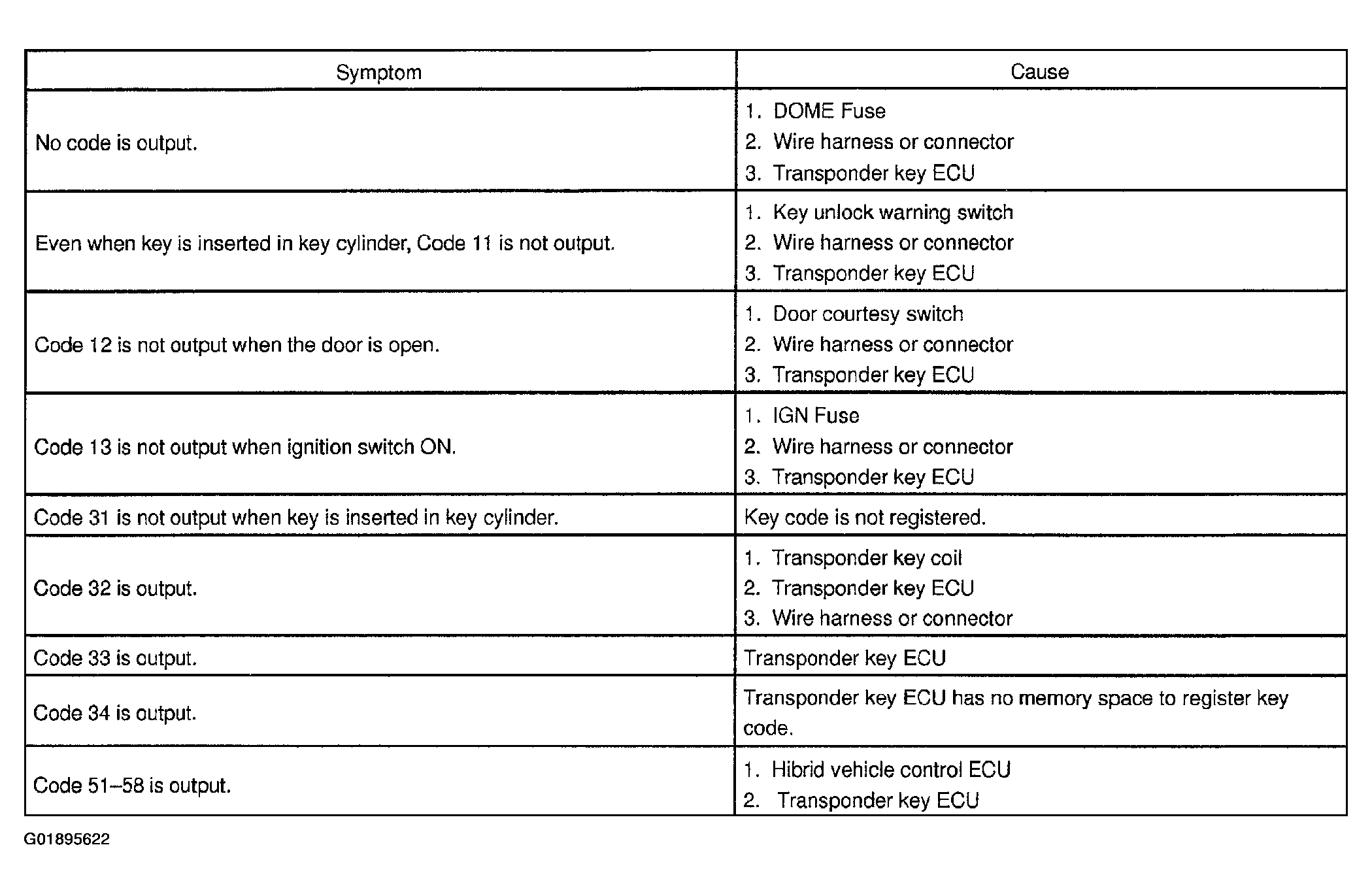

Fig 1: Identifying Malfunction Display Codes For Transponder Key
G01895622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
