Registering Master Key

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Initial condition: All doors closed, no key in cylinder.

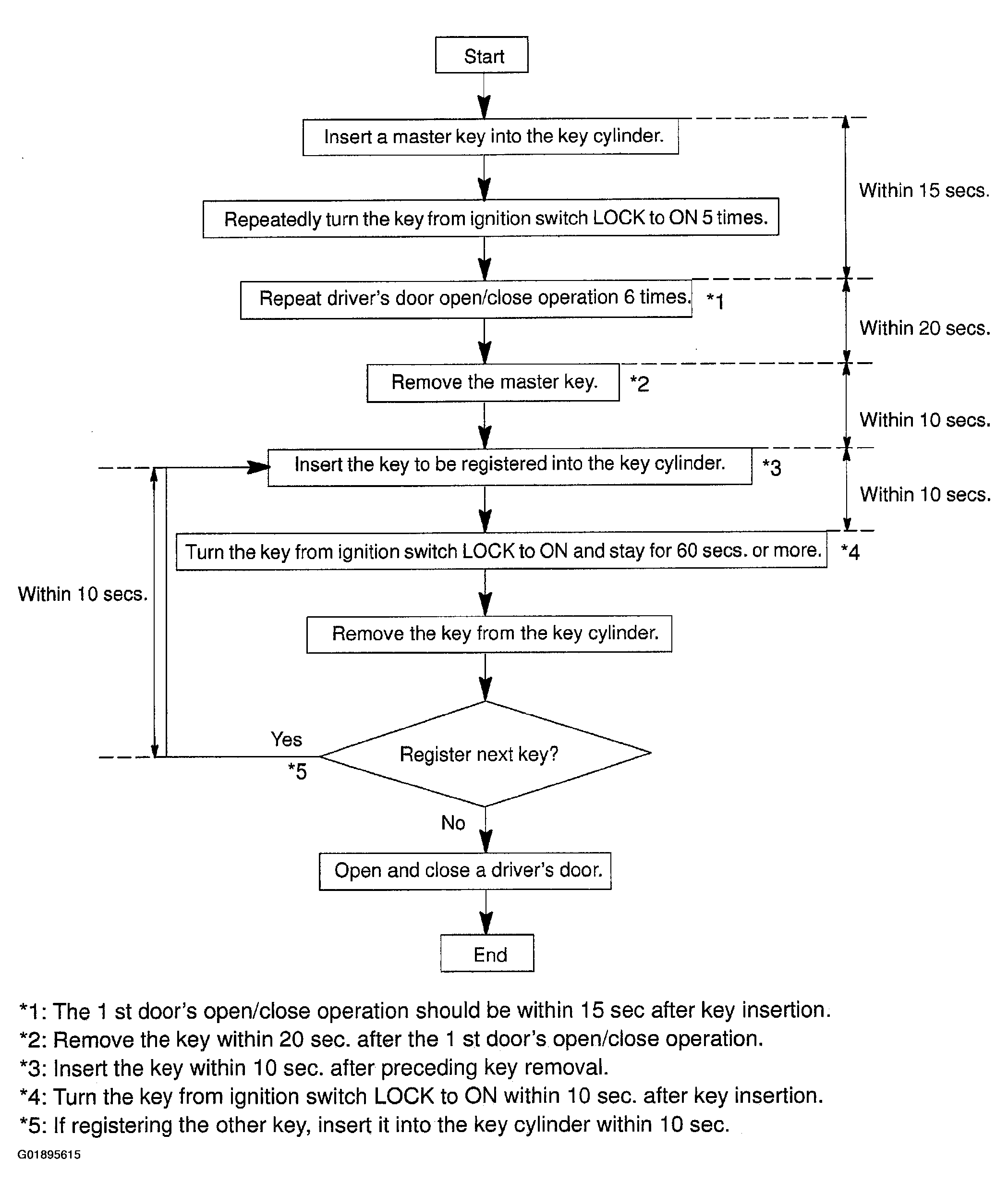

Fig 1: Procedure For Registering Master Key
G01895615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
