INFORMATION CODE (TOYOTA Hand-held tester only)

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

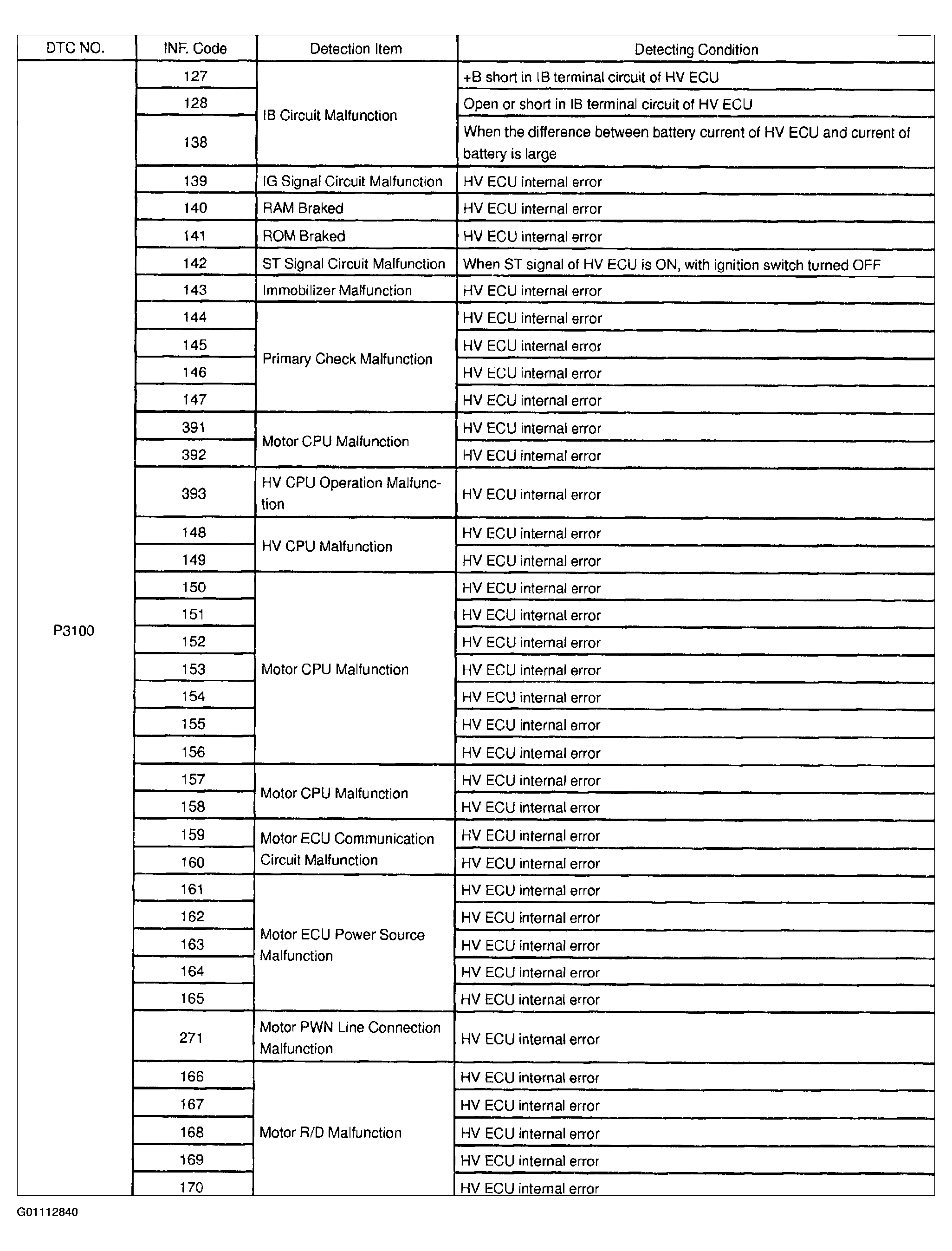

Fig 1: DTC/Information Code/Detection Item/Detecting Condition (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTC/Information Code/Detection Item/Detecting Condition (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTC/Information Code/Detection Item/Detecting Condition (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: DTC/Information Code/Detection Item/Detecting Condition (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: DTC/Information Code/Detection Item/Detecting Condition (5 Of 7)

Fig 6: DTC/Information Code/Detection Item/Detecting Condition (6 Of 7)

Fig 7: DTC/Information Code/Detection Item/Detecting Condition (7 Of 7)
