Circuit Description - DTC P3125 - Information Codes 329, 331, 333, 337, 339, 341: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

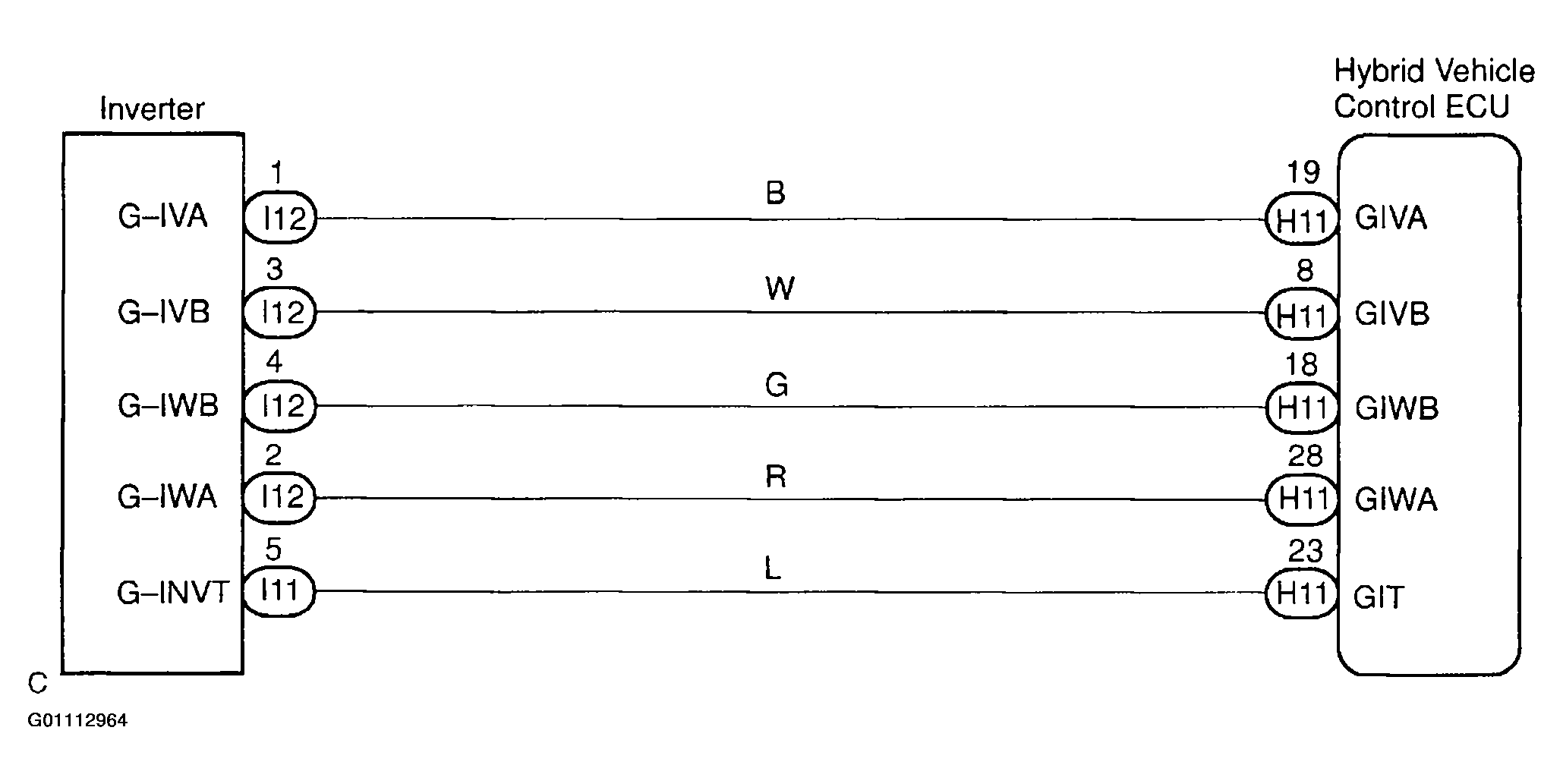

Fig 1: Identifying Converter & Inverter Assembly Information Codes 329, 331, 333, 337, 339 & 341 Circuit
G01112964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
