DTC P3125 - Information Codes 326, 327, 328, 330, 332, 334, 335, 336, 338, 340

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

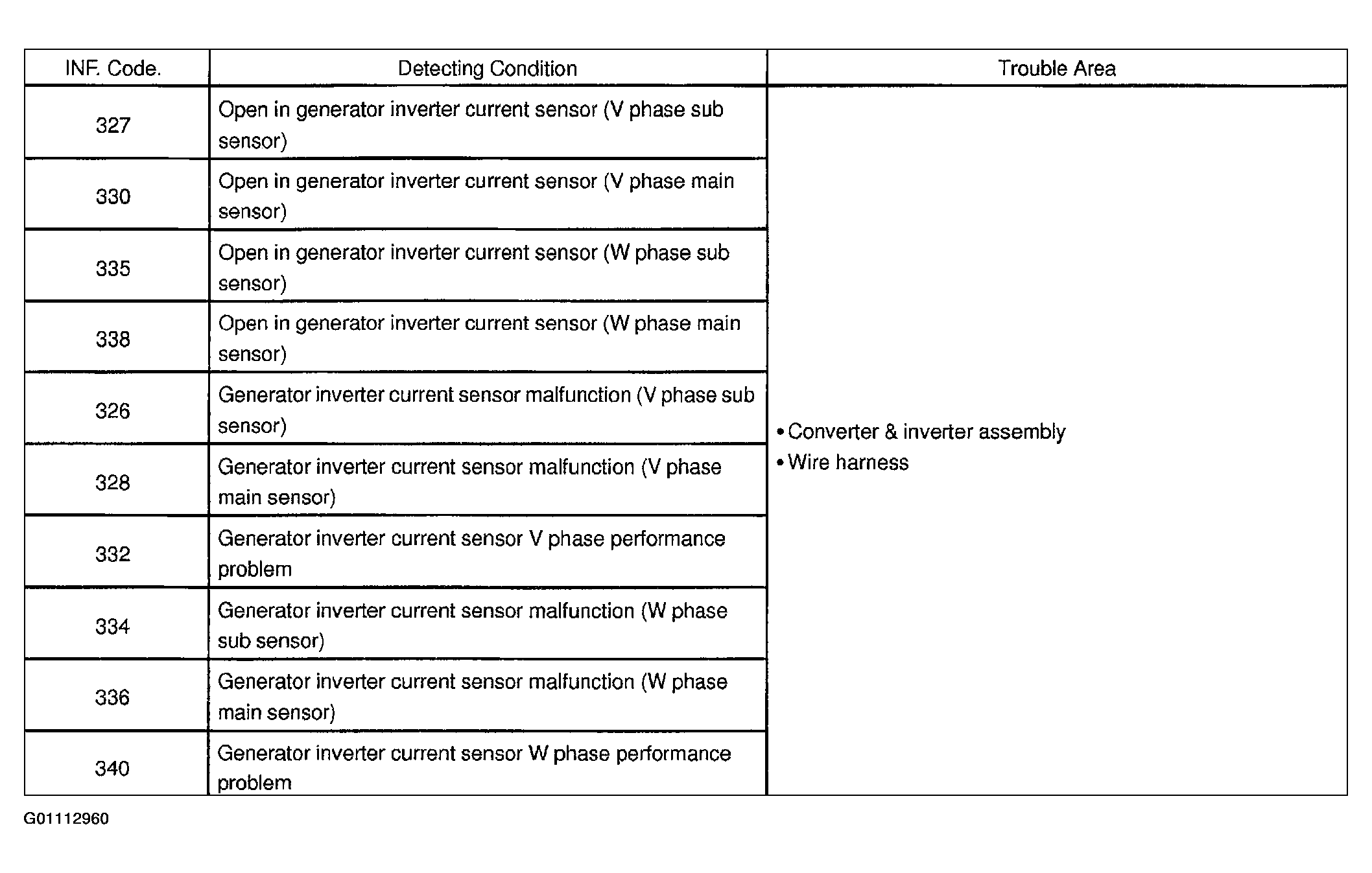

Fig 1: Identifying DTC P3125 Trouble Areas (Information Codes 326-8, 330, 332, 334-6, 338 & 340)
G01112960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
