Circuit Description - DTC P3125 - Information Codes 288, 289, 290, 292, 294, 296, 297, 298, 300, 302: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

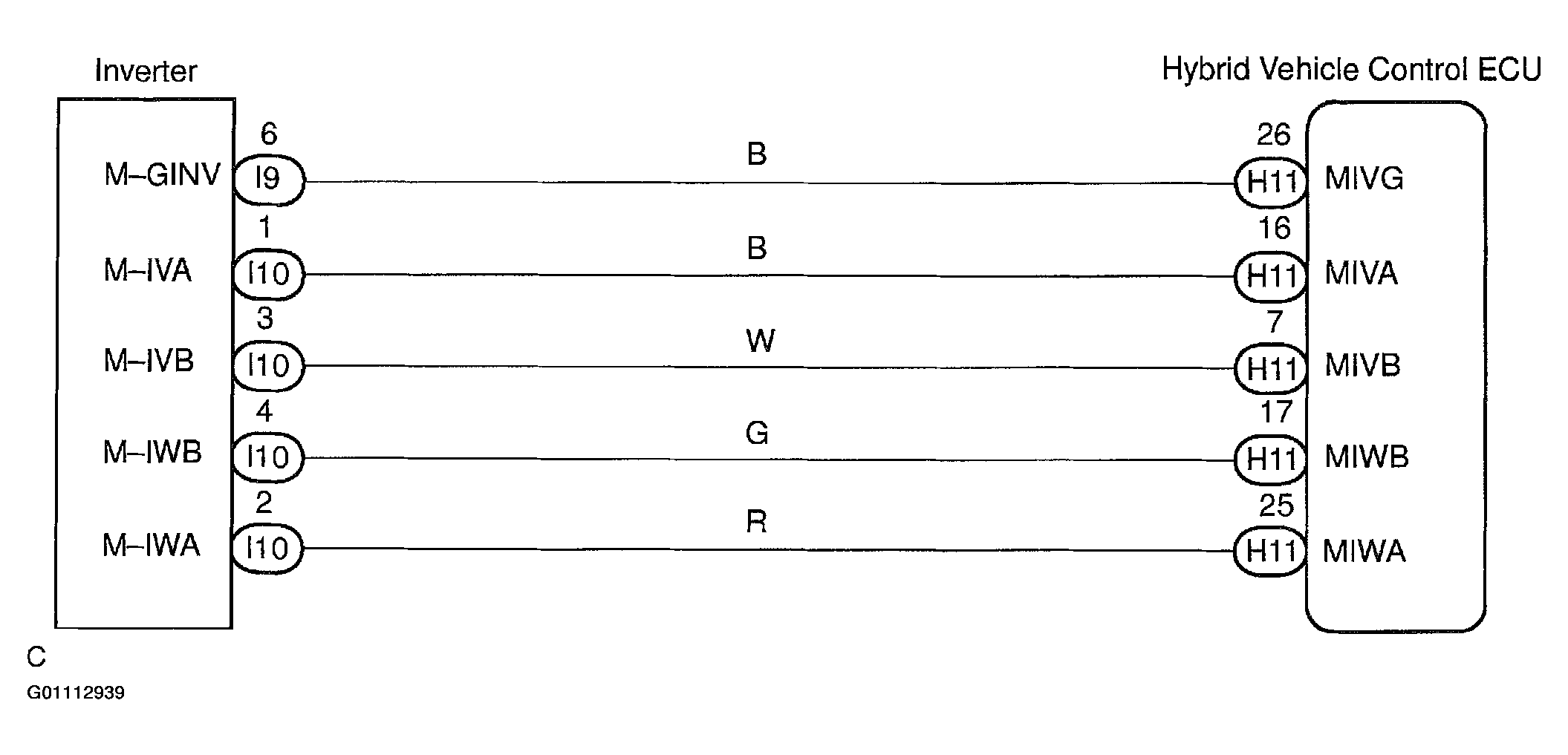

Fig 1: Identifying Converter & Inverter Assembly Information Codes 288-90, 292, 294, 296-8, 300 & 302 Circuit
