Step 2 - Remove Steering Wheel

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector.
  2. Remove the steering wheel set nut.
  3. Place matchmarks on the steering wheel and main shaft assembly.

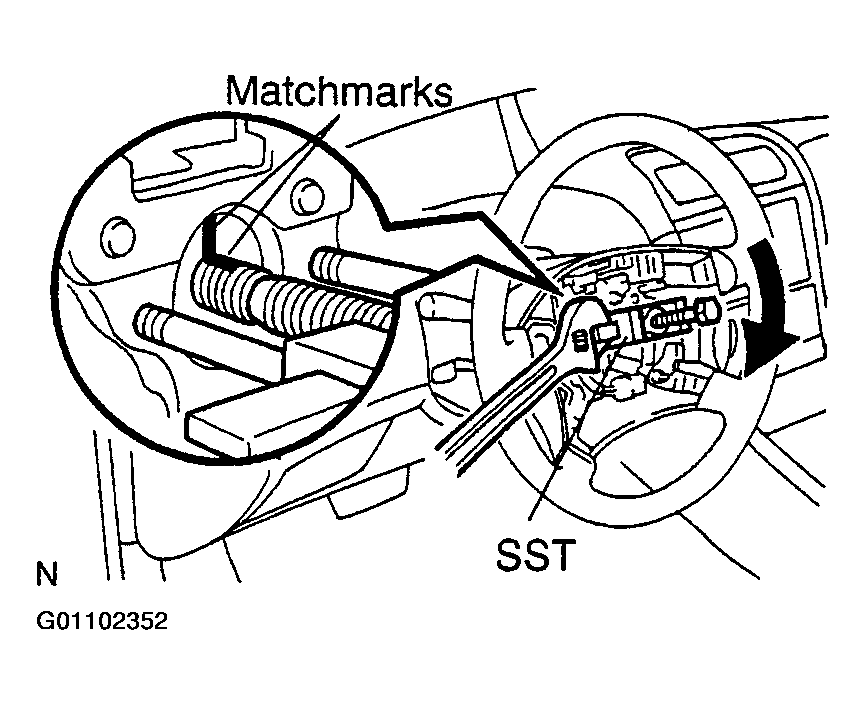

    Fig 1: Matchmarking Steering Wheel & Main Shaft Assembly
    G01102352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Using SST, remove the steering wheel. SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021).
