Step 11 - Disconnect Intermediate Shaft Sub-Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the clamp and disconnect the No. 2 column hole cover sub-assembly.

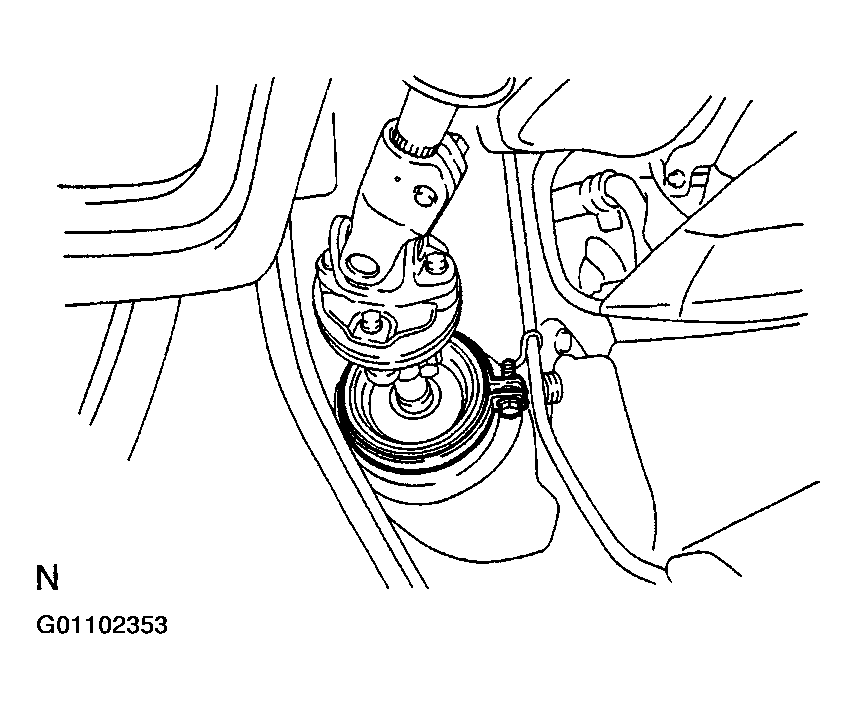

    Fig 1: Locating No. 2 Column Hole Cover Clamp
    G01102353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Place matchmarks on the intermediate shaft sub-assembly and control valve shaft.
  3. Loosen the bolt A and remove the bolt B, then disconnect the intermediate shaft sub-assembly.

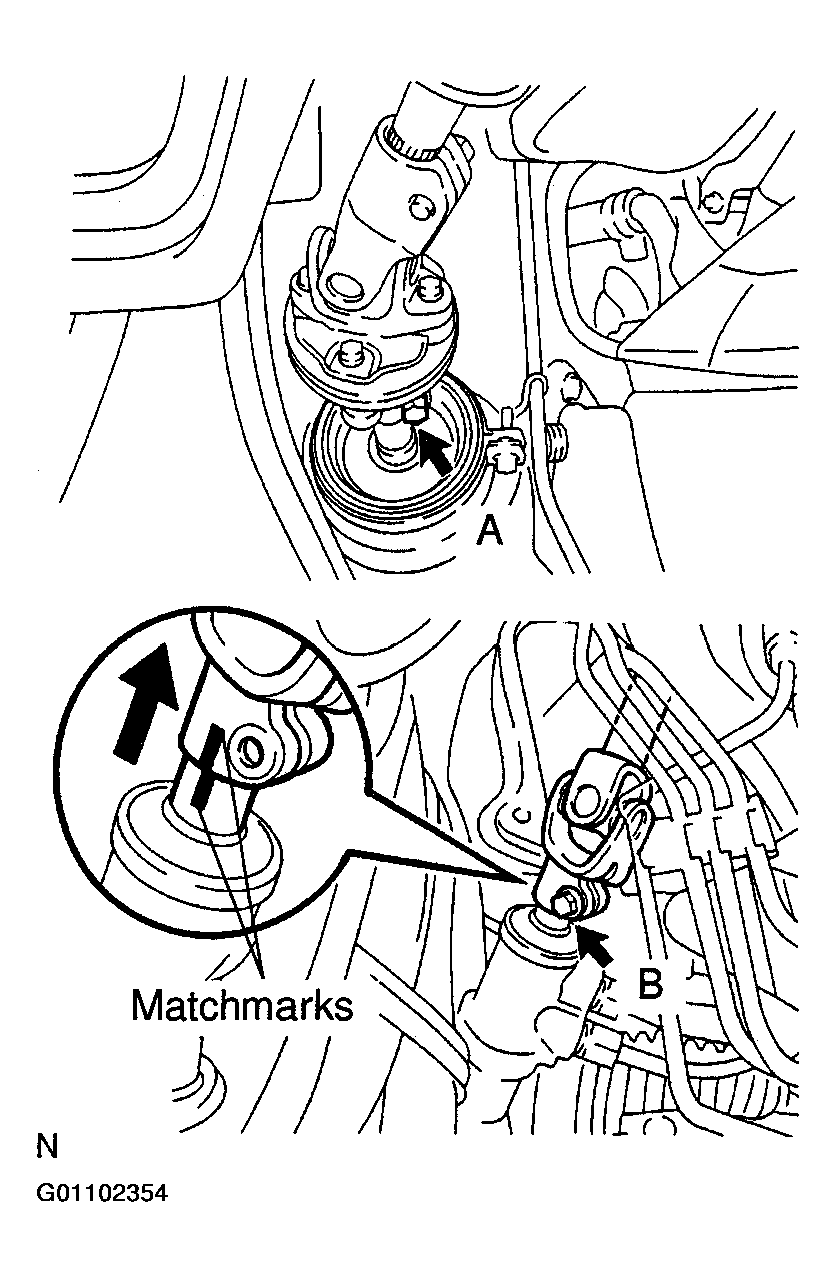

    Fig 2: Matchmarking No. 2 Intermediate Shaft Assembly & Intermediate Extension
    G01102354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
