Step 4 - Remove Drive Belt

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the 2 (A and B) bolts and drive belt.

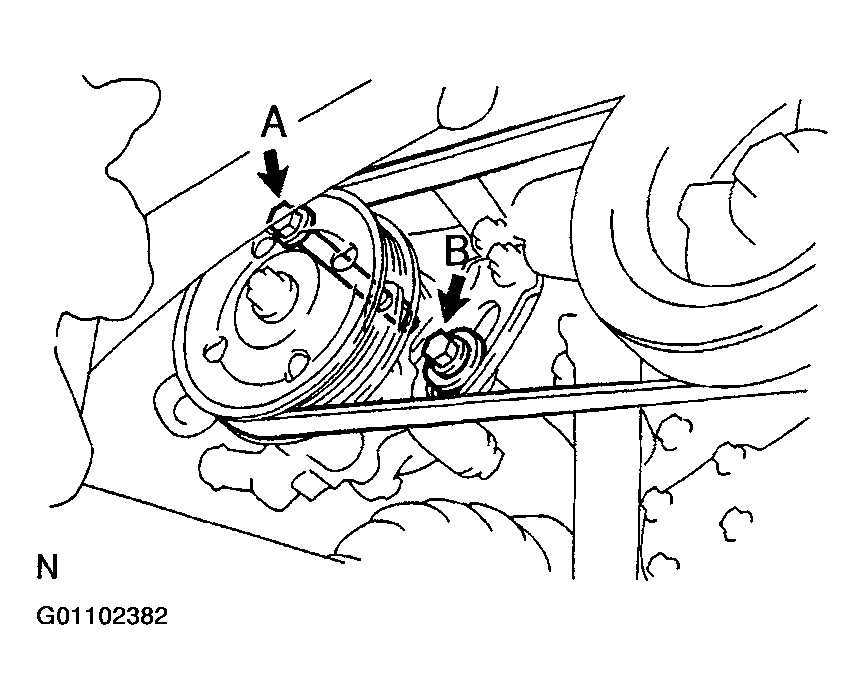

Fig 1: Locating PS Vane Pump Bolts A & B
G01102382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
