Step 3 - Disconnect Pressure Feed Tubes
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the 2 clamp plate set nuts.
- Remove the bolt, 2 clamp plates and 2 holders from the pressure feed tube.

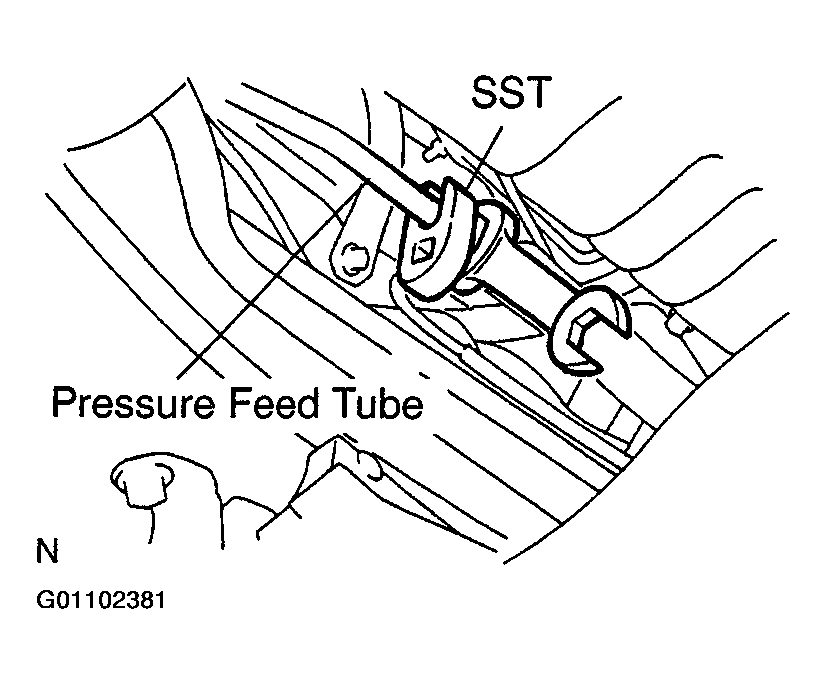

- Using a spanner, hold the pressure feed tube steadily and using SST, disconnect the pressure feed. tube. SST 09023-12700.
