Step 5 - Connect Pressure Feed Tube
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

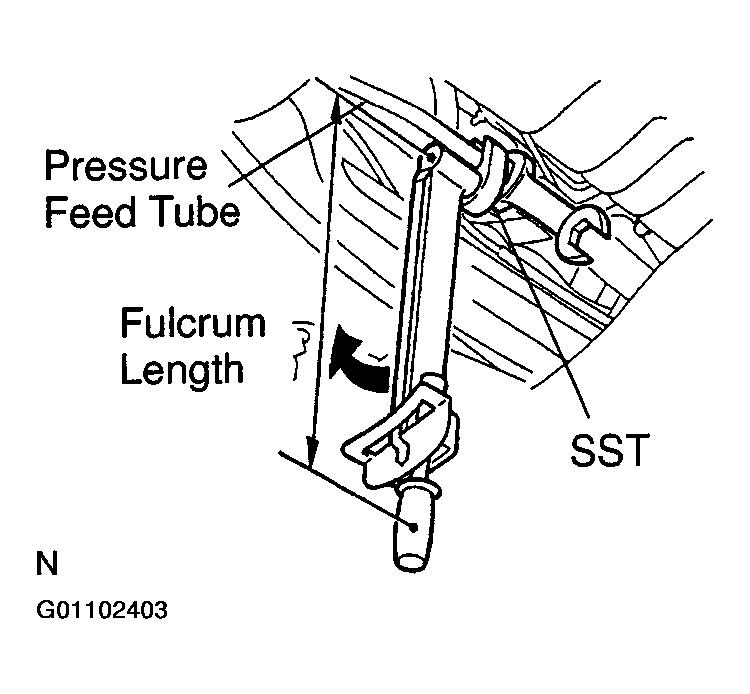

- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
- This torque value is effective in case that SST is parallel to a torque wrench.
- Using a spanner, hold the pressure feed tube steadily and using SST, connect the pressure feed tube. SST 09023-12700.
Torque: 23 N.m (230 kgf.cm, 17 ft. lbf) .
- Install the 2 holders and 2 clamp plates to the pressure feed tube with bolt.
- Install the 2 clamp plate with 2 nuts.
Torque: 7.8 N.m (80 kgf.cm, 69 in. lbf) .
