Step 3 - Install PS Vane Pump Assembly With Presser Feed Tube

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the PS vane pump assembly with 2 (A and B) bolts.

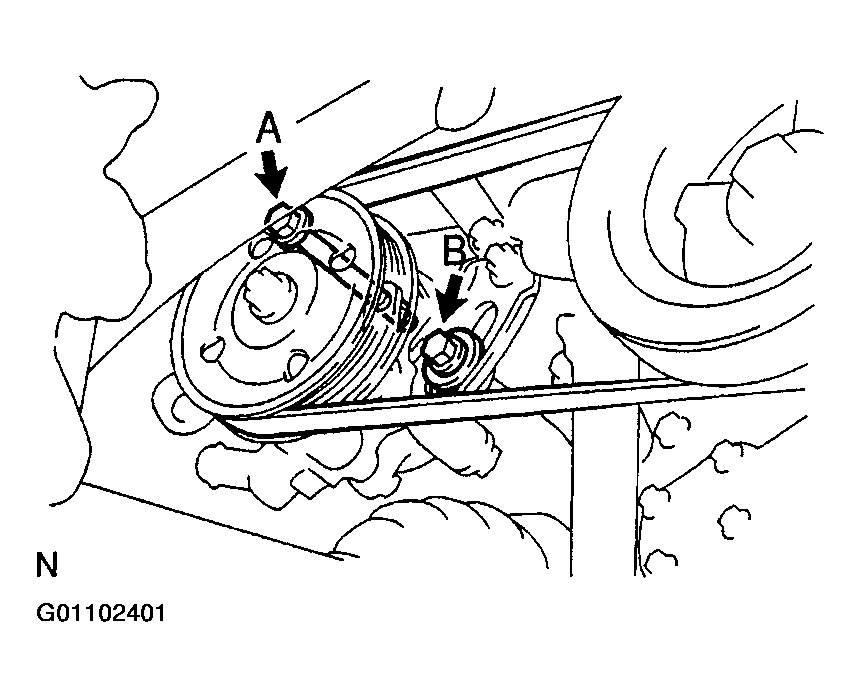

Fig 1: Locating PS Vane Pump Bolts A & B
G01102401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
