How To Proceed With Troubleshooting
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

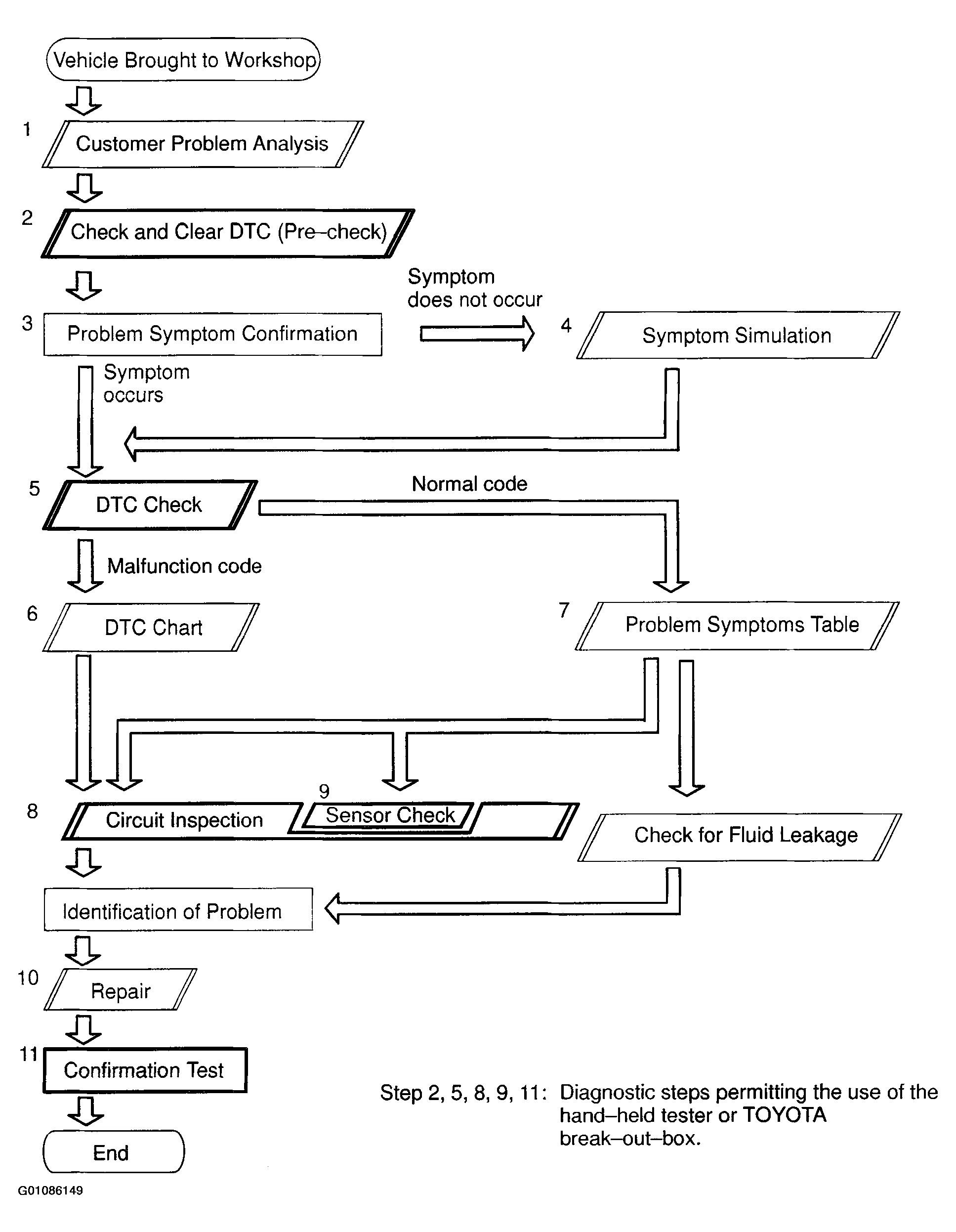

Troubleshoot in accordance with the procedure on the following pages.
Fail safe function:
When a failure occurs in the ABS & BA & TRAC & VSC system, the respective warning light (ABS, VSC) is lit and the operation of ABS & BA & TRAC & VSC is prohibited. In addition to this, when the failure which disables the EBD operation occurs, the brake warning light is lit as well and the EBD operation is prohibited.
