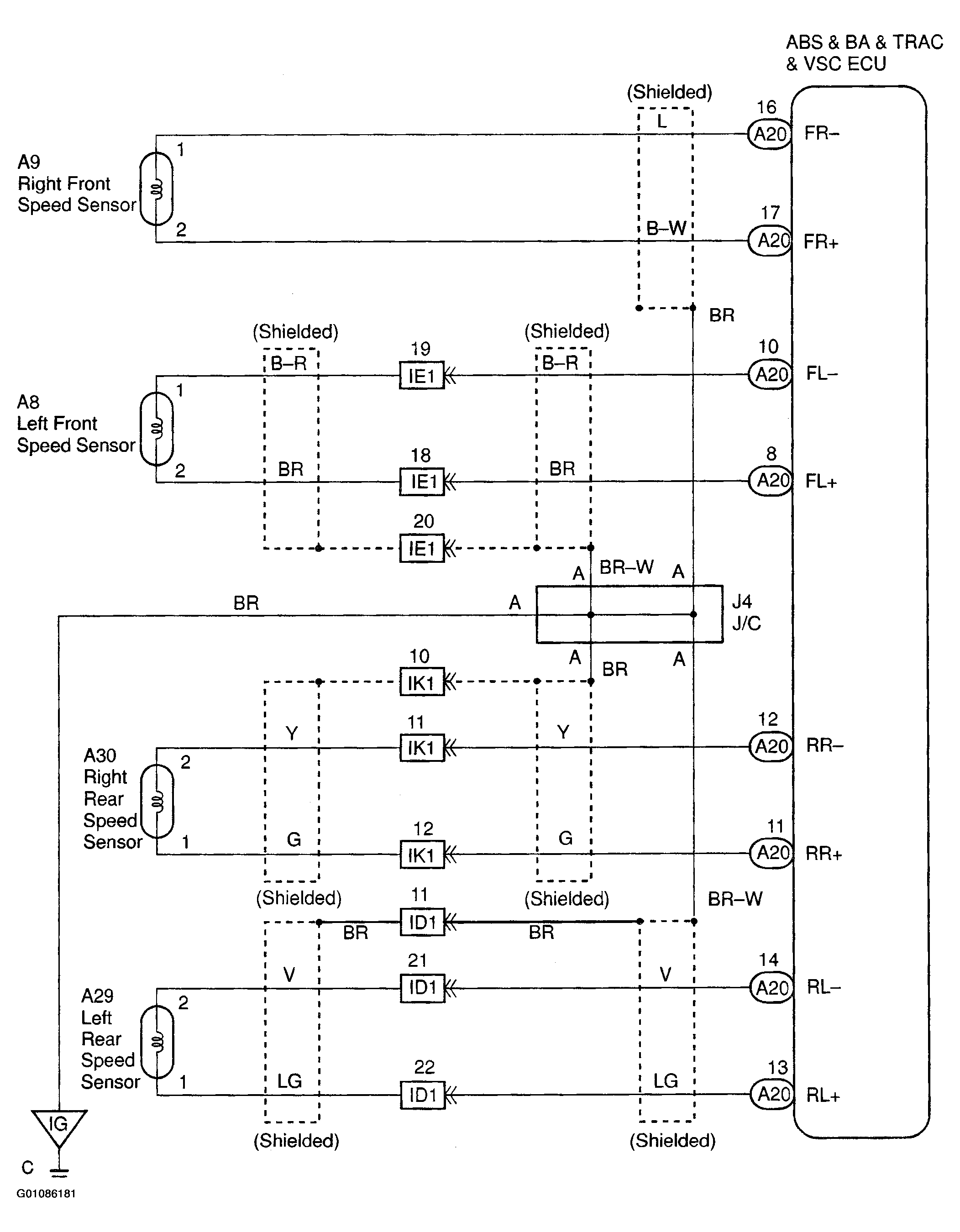

DTC C0200/31-C1331/36 & C1332/38, C1333/39 - Speed Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
