Step 2 - Inspect Turn Signal Flasher Operation

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector from the turn signal flasher and inspect the connector on the wire harness side.

Fig 1: Identifying Turn Signal Flasher Terminals (Wire Harness Side)
G01897746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

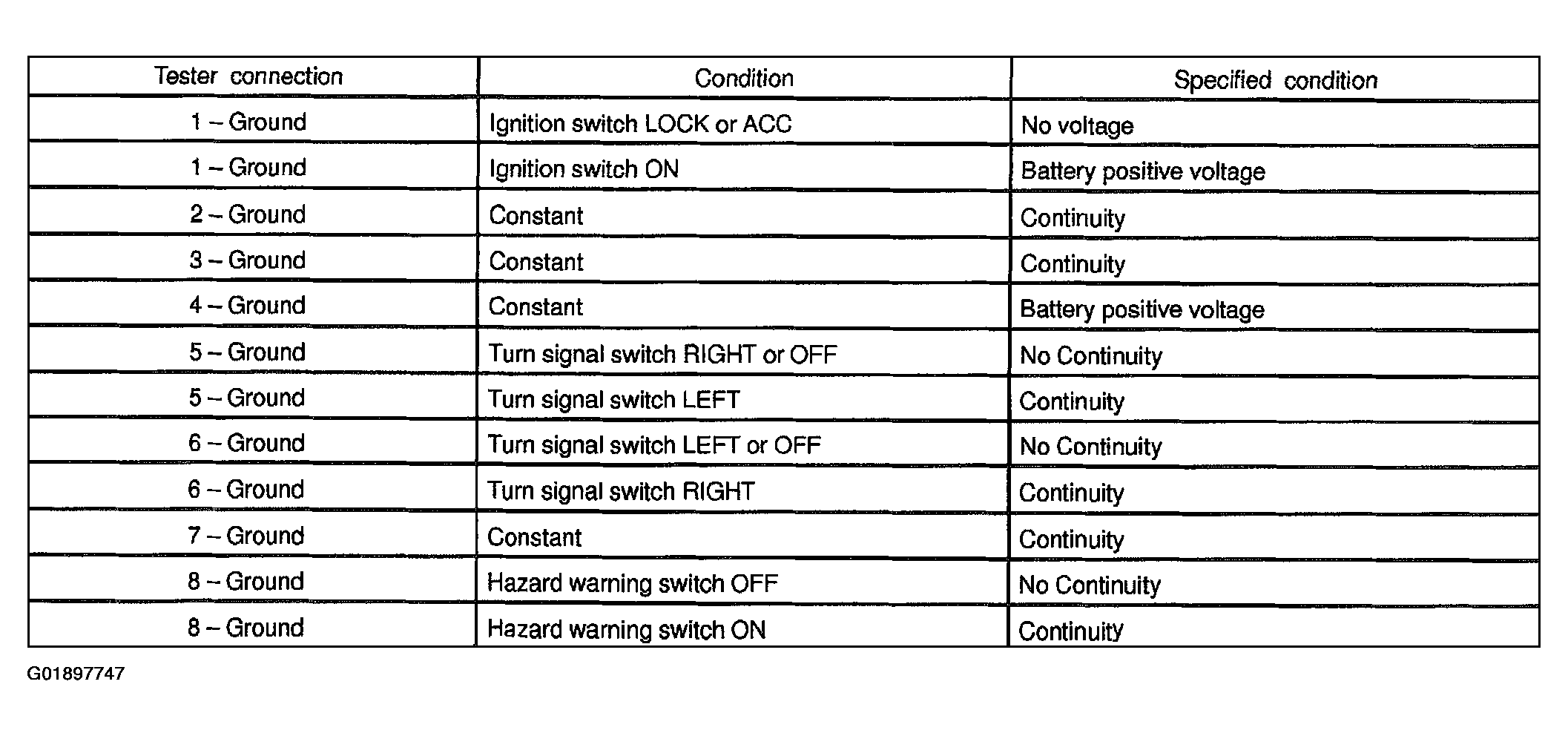

Fig 2: Identifying Turn Signal Flasher Terminal Specifications (Wire Harness Side)
G01897747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
