Step 1 - Inspect Turn Signal Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

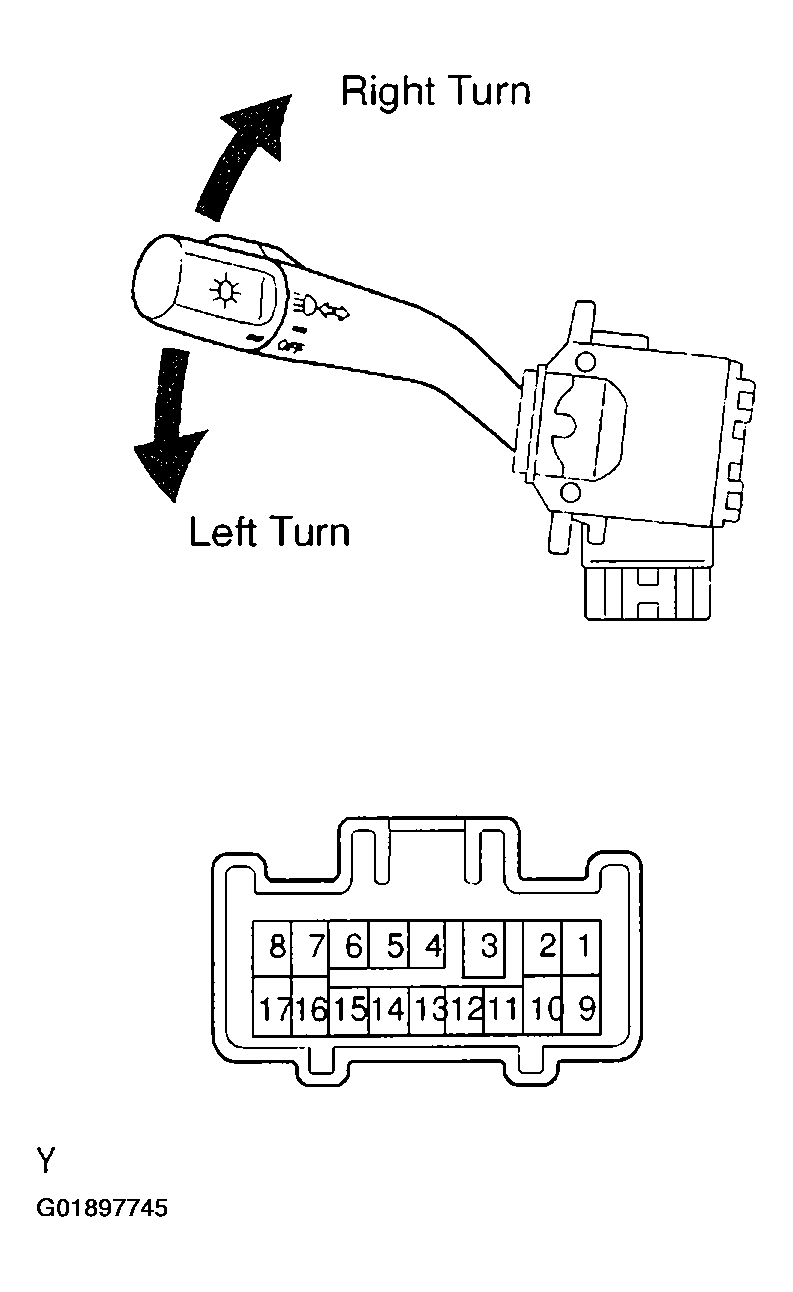

Fig 1: Identifying Turn Signal Switch Positions & Terminals
G01897745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Turn Signal Switch Specifications
G01897744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
