W/O Cruise Control, Inspect Stop Light Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

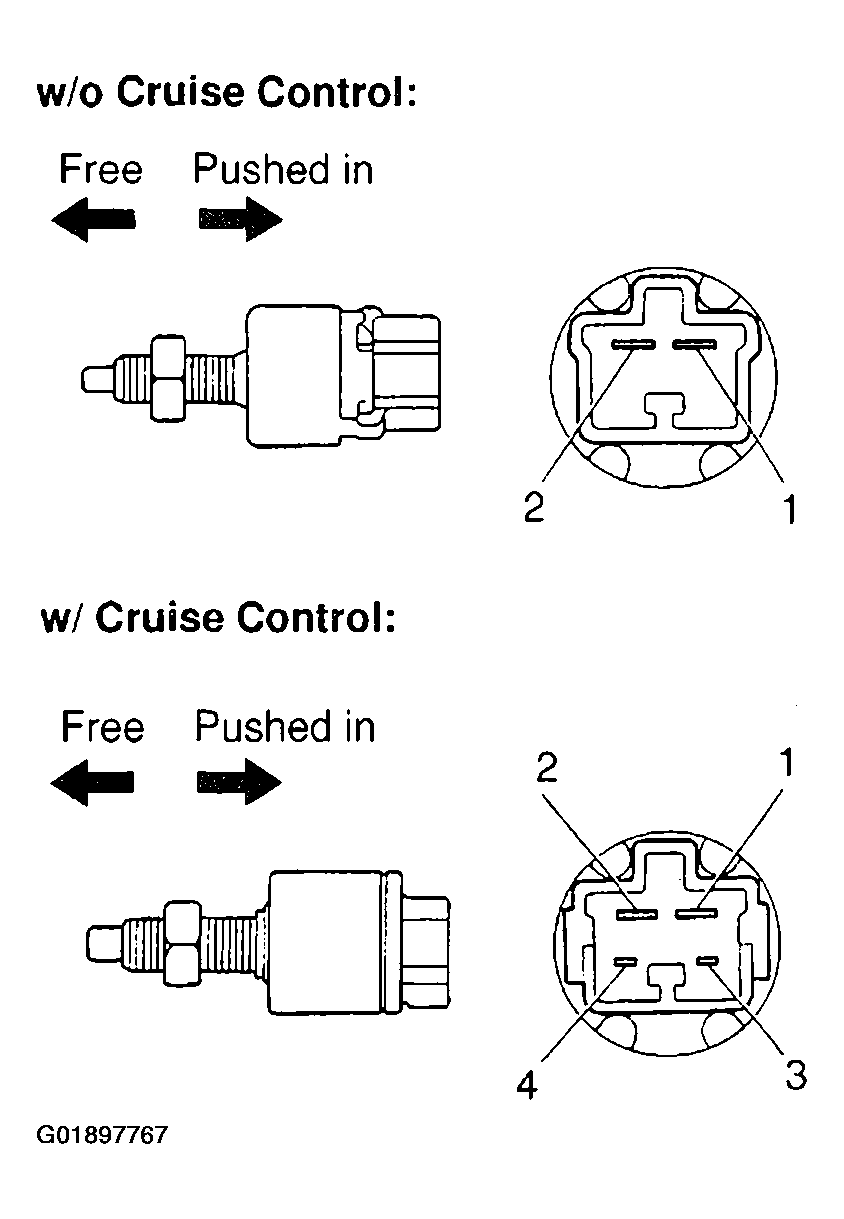

Fig 1: Identifying Stop Light Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Stop Light Switch Terminal Specifications (W/O Cruise Control)

If continuity is not as specified, replace the switch.
