Inspect Hi-Mounted Stop Light Assembly Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Using the ohmmeter, check that continuity exists between terminal 1 and terminal 2.

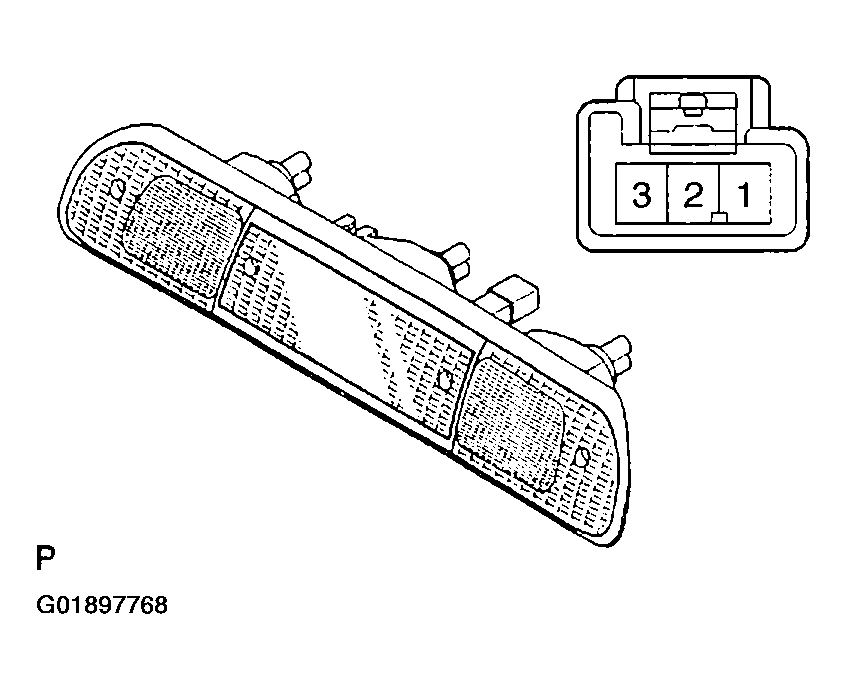

Fig 1: Identifying Hi-Mounted Stop Light Terminals

If continuity is not as specified, replace the light assembly or bulb.
