Step 2 - Inspect Cargo Light Assembly Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Using the ohmmeter, check that continuity exists between terminal 3 and terminal 2.

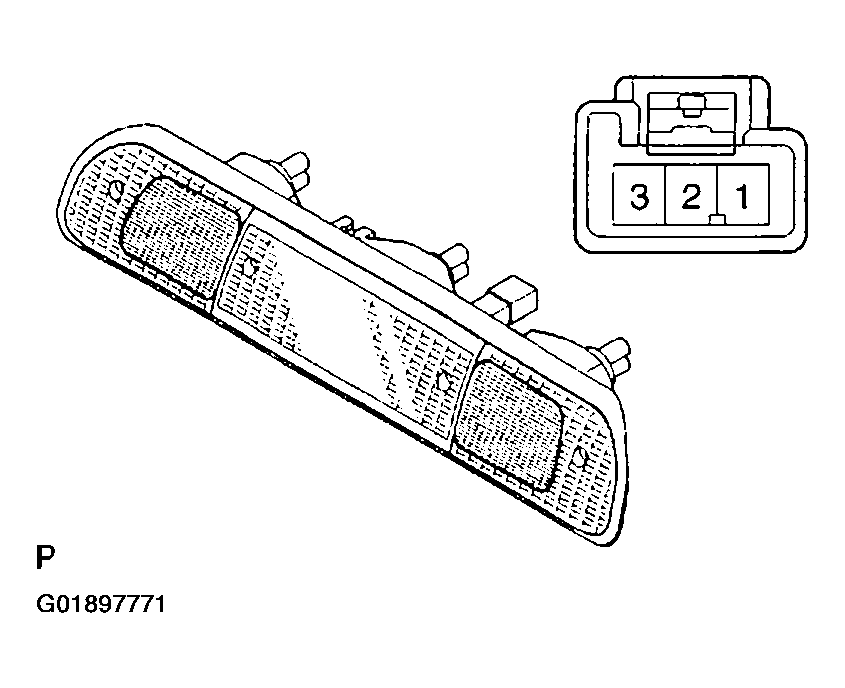

Fig 1: Identifying Cargo Light Connector Terminals
G01897771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the light assembly or bulb.
