Step 1 - Inspect Cargo Light Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center cluster finish panel.
  2. Disconnect the connector from the center cluster integration.
  3. Check the continuity exists between terminal 12 and terminal 1, with the switch ON.

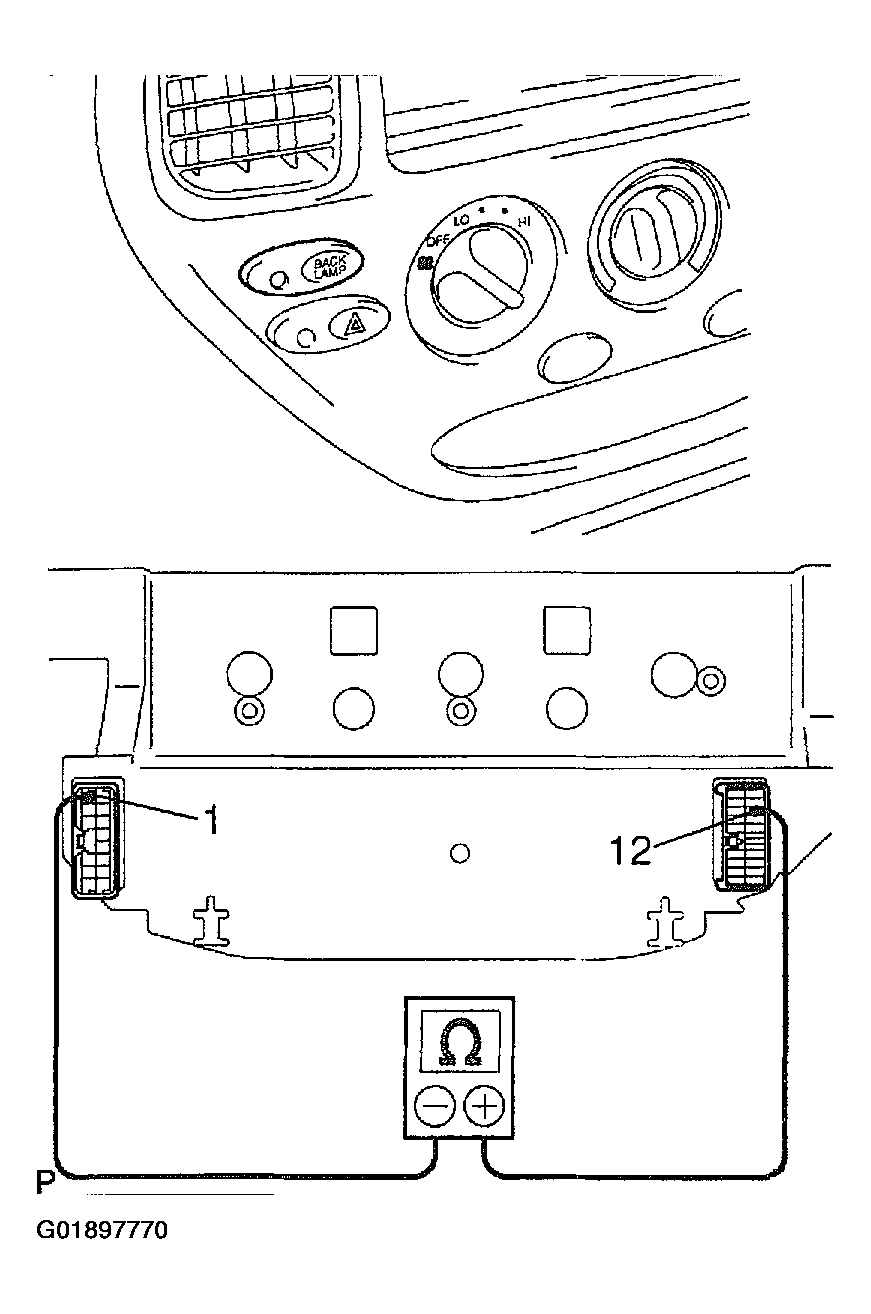

    Fig 1: Testing Cargo Light
    G01897770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Check that no continuity exists between terminal 12 and terminal 1, with the switch OFF.

If continuity is not as specified, replace the switch.
